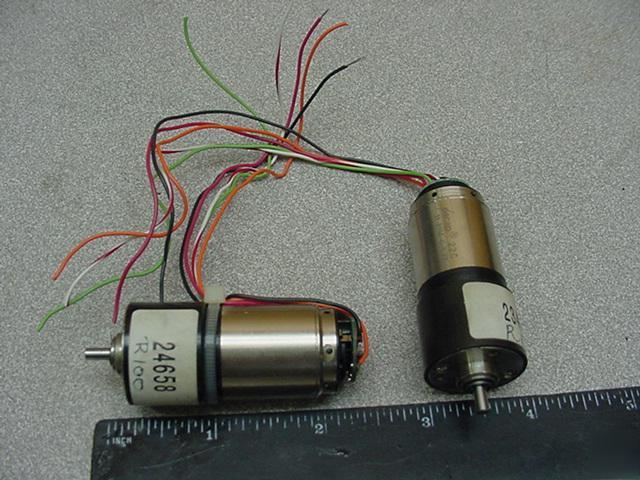

Escap 210E 22C precision dc gear motor,QTY2,35RPM,9VDC
* Used/Removed from lightly used medical surplus (removed from some type of loading tray)
* Physical condition: Very Clean, Excellent operational condition
* I guarantee them to be good. 3 Day right of return for all U.S.A. sales.
* Motor model: Escap 22C 11 210E C
* Gear reduction: Escap K24 128:1 ratio
* Shaft diameter: 0.117"
* 2.07" long not including shaft length of 0.23"
* Tested at 9vdc, the RPM was approx. 35. High torque, I have no way to test them for torque.
* They begin to run at a low voltage of 1vdc. I did not test over 9vdc.
* Red & Black leads are for the motor input voltage. Reversible, just reverse polarity of your power source.
* I do not know the exact specifications for these motors, encoder type, etc... Was unable to find them on the escap web site....
