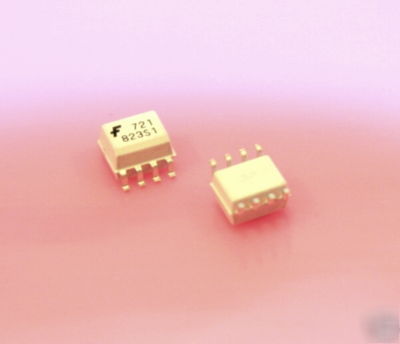

FOD0721 fast 25MBIT/sec high cmr cmos optocoupler (X8)
High CMR, 25Mbit/sec Logic Gate Optocoupler
Data Rate, Non-Return Zero Coding
25Mbit/sec (FOD0721 and FOD0720)
Extended industrial temperate range
-40 to 100 C temperature range
These high-speed logic gate optocouplers consist of a
high-speed AlGaAs LED driven by a CMOS IC coupled
to a CMOS detector IC, comprising an integrated photodiode,
a high-speed transimpedance amplifier and a
voltage comparator with an output driver. The CMOS
technology coupled to the high efficiency of the LED
achieves low power consumption as well as very high
speed (40ns propagation delay, 6ns pulse width
