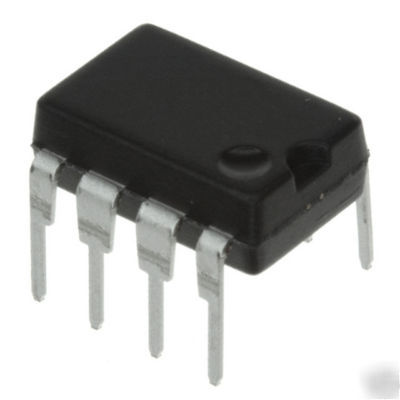

Ic chips: EL2045CN low power 100MHZ gain stable op amp
100 MHz gain-bandwidth product
Low supply current = 5.2mA at VS = 15V
Wide supply range = 2V to 18V dual-supply and 2.5V to 36V single-supply
Fast settling = 80ns to 0.1% for a 10V step
Low differential gain = 0.02% at AV = +2, RL = 150O
Low differential phase = 0.07 at AV = +2, RL = 150O
Stable with unlimited capacitive load
Wide output voltage swing = 13.6V with VS = 15V,RL = 1kO and 3.8V/0.3V with VS = +5V, RL = 500O
High speed signal processing
