Lot of 4 securitron tsb-3CL touch sense bars clear 36"

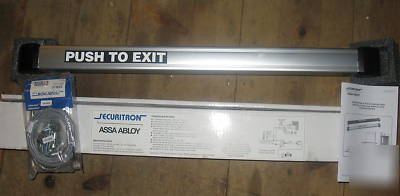

With this Lot you will receive 4 Brand new in Box Securitron Touch Sense Bars Model # TSB-3CL.
Application - The Touch Sense Bar is for use on magnetically locked, non firerated doors. Touching the bar, even through light gloves or clothing, trips an electronic sensor which releases the lock. For indoor use only, the TSB-3 can be installed on metal, aluminum, or wood frame doors of all types. Meets no special tools or knowledge code requirements.
* Activates a DPST 2 Amp rated relay when touched (no mechanical movement) which will allow free egress or initiate the delay on an exit delay timer
* 16 ft. [4.8m] 22AWG 6 conductor cable and stainless steel armored door cord are included
* Operates on either 12 or 24 VDC
* Current Draw: 40mA at rest, 25mA releasing
* Operating Temperature: +32 to +110F [0 to +43C]
If you have any questions please email us. Thanks for looking.
