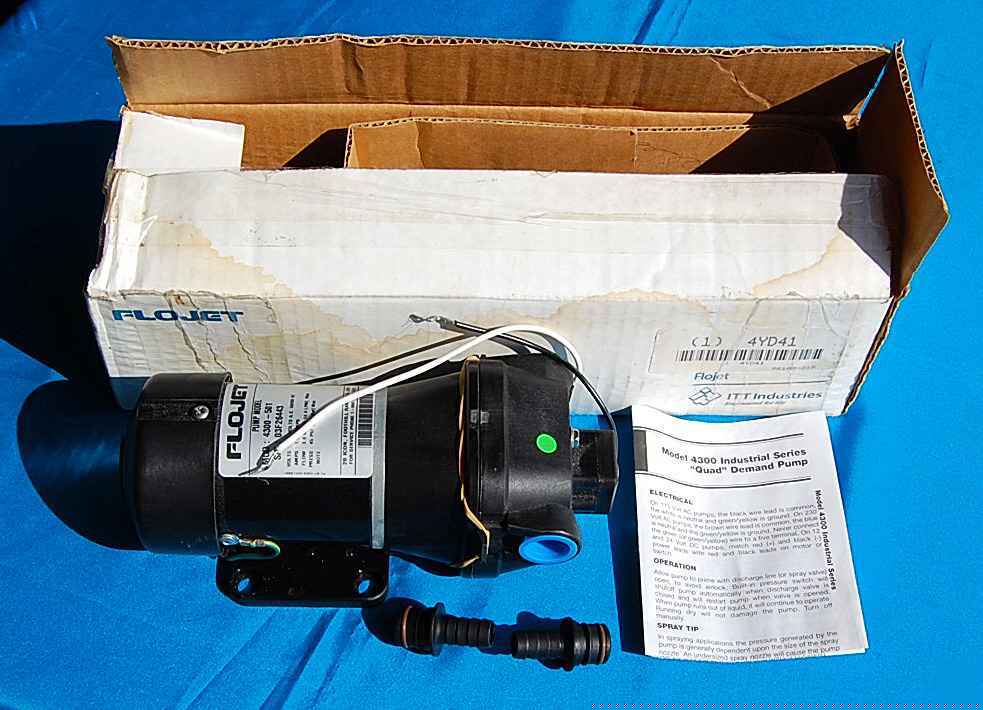

Flojet 04300-501 pump 115V 3.5/45 psv sw
Quad AC Pressure Controlled Pump
Self-priming diaphragm pump with 110-240v AC electric motors. Flow rates up to 17 litres/min (4.5 US gallons/min), pressure switch control, capable of pressures up to 3.2bar (45psi)
Self-primes up to 2.4m vertical lift
Handles Water-Like and Viscous Liquids up to 250 cP
Four-piston design delivers higher flow rates
Chemical-resistant polypropylene pump head for Iong life
Choice of elastomeric materials to work with many chemicals
Quick-connect plug-in ports for easy installation
Optional pressure-switch control to run the pump only as needed
Voltage 115 & 230, 50 or 60Hz VAC
Flow Rate up to 5 US Gallons/Min (18.9 Litres/min)
Max. Pressure up to 45psi (3.2bar)
Elastomers EPDM, Santoprene, Nitrile or Viton
Flow Rate 3.5 US Gallons/Min (13.2 Litres/Min)
Pressure Switch Setting 30psi (2.1 bar) Cut In, 45psi (3.2 Bar) Cut Out
Elastomers Santoprene Diaphragm/Viton Valves
Flojet Manufacturer Part Number
