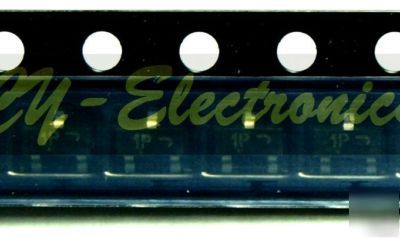

500 pcs MMBT2222ALT1 npn transistor 1P on
Type: MMBT2222ALT1, General Purpose Transistors , NPN Silicon
Collector Base Voltage VCBO 75 Vdc
Collector Current Continuous IC 600 mAdc
Total Device Dissipation FR 5 Board(1)
Thermal Resistance, Junction to Ambient R_JA 556 C/W
Alumina Substrate,(2) TA = 25 C
Thermal Resistance, Junction to Ambient R_JA 417 C/W
Junction and Storage Temperature TJ, Tstg 55 to +150 C
