7X~45X trinocular stereo zoom microscope w dual halogen

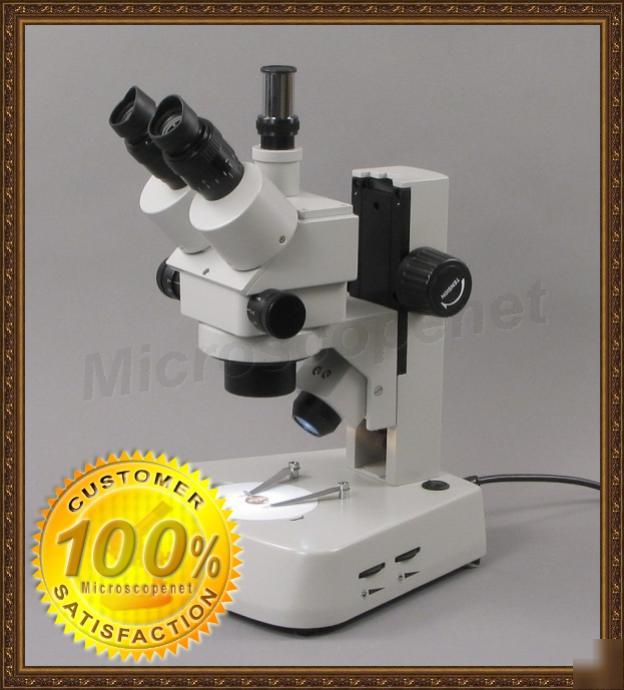

Trinocular 7x~45x Zoom Stereo Microscope
* Top quality optical glass elements
* Easy to connect digital camera (adapter not included), CCD camera (electronic eyepiece) to TV or computer
* Zoom lenses 7x~45x, crystal clear within any range
* Long working distance allows enough operation space
* 45 inclined 360 rotatable trinocular head
* Individual adjustable intensity incident and transmitted lights
* Upper (incident) light has 90 inclination range
* Sharp erect stereo images over a wide field view
* Both ocular tubes have diopter adjustment
* Separate photo-tube focus adjustment
* Adjustable inter-pupillary distance to fit anyone's eyes
* Tool-free focus knob tension adjustment
* Easy mounting ring lights (sold separately)
* Head: 45 Inclined 360 rotatable trinocular.
* Eyepiece: wide field WF10X/20
* Total magnification: 7x~45x
* Both ocular tubes have diopter adjustment 5dp
* Beam split lever enables photo-tube or left eye-tube
* Interpupillary distance: 2-3/16" ~ 2-15/16"(55~75mm)
* Working distance: 3-3/4" (95mm) without 0.5x auxiliary lens and 6" (152mm) with 0.5x auxiliary lens
* Focus adjustment stroke: 5-1/5" (140mm)
* Incident (upper) illuminator: 12V/10W halogen, 90 adjustable inclined angle range
* Transmitted (lower) illuminator: 12V/10W halogen
* Each light has its own intensity control with power on/off switch
* Auxiliary objective thread: 50mm in diameter
* Clear glass stage plate: 3-3/4" (95mm) in diameter
* Power supply: 100V-240V 50/60Hz (US and Canada plug)
* Dimension: 10" x 10" x 18" (25.4cmx25.4cmx46cm)
* Net weight: 13 lb 4 oz ( 6kg)
* Package volume equivalent weight: 33 lb (15kg)
* Trinocular stereo microscope with WF10X/20 eyepieces
* A pack of lens cleaning paper
* Extra halogen bulb 12V/10W with reflector
* Extra halogen bulb 12V/10W
* Gooseneck fiber cold light
* Digital camera adapters (Nikon, Olympus, Canon, Ricoh)
* 0.5X auxiliary objective (D50mm)
* Mechanical specimen stage (D95mm)
* Spare halogen bulb 12V/10W
* Spare halogen bulb 12V/10W with reflector
