Basic stamp mini lcd oscilloscope

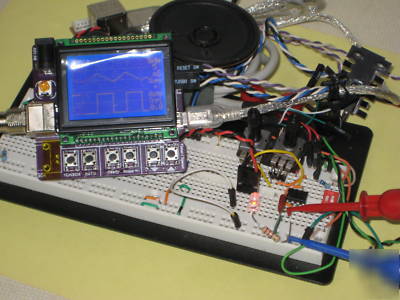

Please note this unit is only good for TTL signals NOT MORE THEN 5 Volts (USB power coard includded). It will also run on a 8V to 12V plug in power pack. It is a dual trace scope usefull for Basic Stamp, audio and other microcontrollers. IM me if interestted in more applications. I find it very usefull for road work where to don't want so carry around a scope.
Ultra Mini Oscilloscope 2 Channel
Timebase 1CH. = 500mS 200mS 100mS 50mS 20mS 10mS 5mS 2mS 1mS 500uS 200uS 100uS
Timebase 2CH. = 1S 500mS 200mS 100mS 50mS 20mS 10mS 5mS 2mS 1mS
DISPLAY 1Ch/2Ch (optional) Blue screen White writing
5 pin header for 5V and dual channel hookup
Oscilloscope lead jack for channel #1 and spot to add another oscilloscope jack
Power supply voltage 6V to 12V
