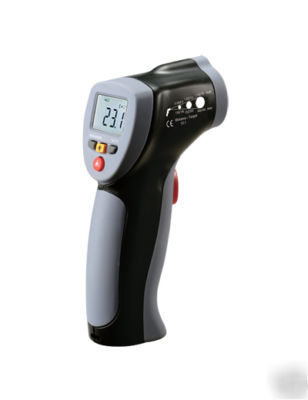

Compact noncontact infrared thermometer laser 716 ºf
This DT-8802 Low cost Compact IR Thermometer provides non-contact temperature measurements: Food preparation, Safety and Fire inspectors, Plastic moldings, Asphalt, Marine and Screen Printing, Measure ink and dryer temperature, Diesel and Fleet maintenance. Targeting objects are easy with the bright laser beam. Even in the dark, the display is easy to read with the quality backlit scroll.
1. Unique flat surface,mini modern housing design
2. Temperature measurements from -50 C to 380 C(58 F to 716 F)
3. Built-in laser pointer identifies target area
6. MAX/MIN temperature displays
8. Automatic Data Hold & Auto power off
9. Automatic selection range and Display Resolution 0.1 C(0.1 F)
10. The meter at 12 inches away measure 1 inch target
-50 C to 380 C/-58 F to 716 F
Automatic (no indication for positive polarity); Minus (-) sign for negative polarity.
D/S = Approx. 12:1 ratio (D = distance, S = spot)
(Has 90% encircled energy at the focal point)
Output <1mW, Wavelength 630~670nm,class 2 (II) Laser product
Automatic shut off after 10 seconds, approx.
10%~90%RH operating, <80%RH storage
9V battery, NEDA 1604A or IEC 6LR61, or equivalent
Assumes ambient operating temperature of 18 to 28oC(64 to 82oF),less than 80%RH
* 1pc IR-8802 Compact InfraRed Thermometer (main unit)
