Custom breakout board 11 2 wire output to 14 pin input

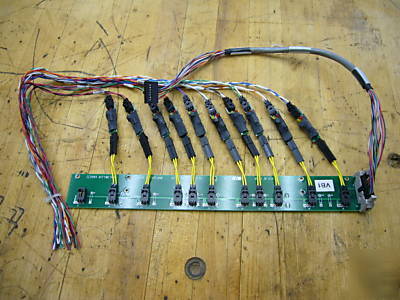

This circuit board is 11.5" x 1.375" and has 11ea 2 wire plugs and cables with output status LED's . The 2 wire plugs were originally for 12v micro solenoid valves, but other voltages could probably be used. The cables are all about the length in the pic.. The output cable is a 14 pin circuit board push on, similar to the end connected to the board.
The pic shows 10 cables, you get 11.
I have micro solenoid valves in other listings that will connect to these boards perfectly.
