Digivac vacuum gauge 200 with varian 531 thermocouple

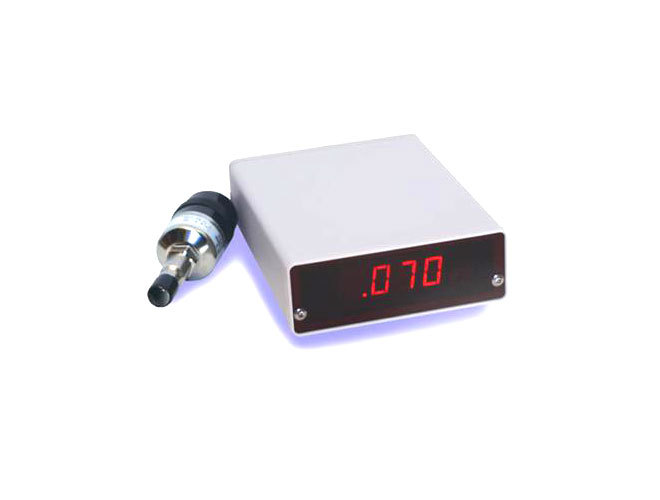

Start Saving with the Digivac Vacuum Gauge Model 200. The Digivac Model 200 is the industry's best value for a rugged vacuum gauge for measuring through 6 decades of wide range rough vacuum. This unit measures vacuum in Torr and uses the rugged Varian 531 thermocouple vacuum gauge tube. The gauge controller is housed in a laboratory grade case consisting of vinyl clad metal on an extruded aluminum base insuring maximum durability.
Start Saving with the Digivac Vacuum Gauge Model 200. The Digivac Model 200 is the industry's best value for a rugged vacuum gauge for measuring through 6 decades of wide range rough vacuum. This unit measures vacuum in Torr and uses the rugged Varian 531 thermocouple vacuum gauge tube. The gauge controller is housed in a laboratory grade case consisting of vinyl clad metal on an extruded aluminum base insuring maximum durability. The Digivac has no moving parts so is highly resistant to shock, therefore requires infrequent calibration. The Digivac gauge controller has a large bright LED display which can be easily read from across the room, or in dimly lit locations. This gauge measures from 1 micron (1 x 10-3torr) all the way up to 760,000 microns (760 torr) or atmosphere. The wide range of this vacuum instrument enables users to easily troubleshoot their system. This gauge can also output vacuum readings to an optional RS232 serial connection. This output can be used to graph and plot historical data with the Digivac plotting software, and can also be used as a vacuum transmitter to a PLC or other device.
* Vac Interface 1/8" MNPT or KF/NW
* Sensor cable length 9 feet
* Display .56" high, 3.5 Digit Red LED
* Dimensions 1.5" high, 4.25" wide, 5.5" deep
* Power 100 - 240 VAC, 50/60 Hz, CE rated
* Digivac Vacuum Gauge 200 with Varian 531 Thermocouple
