Dmg deckel maho model: dmc 100 u duoblock

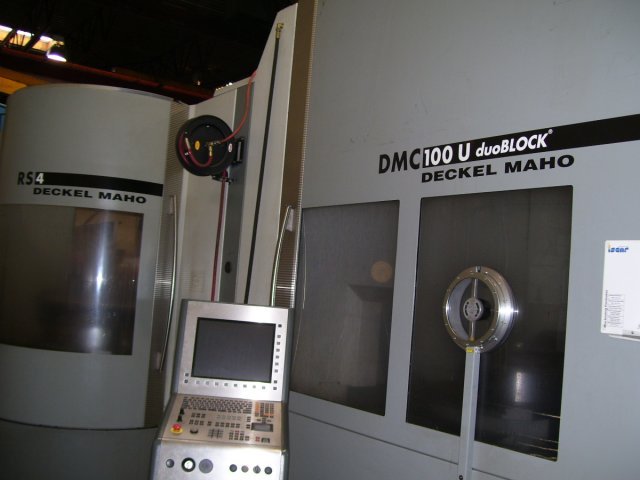

DMG DECKEL MAHO MODEL: DMC 100 U DUOBLOCK
5-AXIS HORIZONTAL MACHINING CENTER
X-AXIS TRAVELS......................... 39.4"
Y-AXIS TRAVELS......................... 39.4"
Z-AXIS TRAVELS......................... 39.4"
A-AXIS (SWIVEL MILLING HEAD)........... - 120/+10 DEGREES
C-AXIS (ROTARY TABLE).................. 360,000 DEGREE, UP TO 30 RPM
MAXIMUM FEED RATE (X/Y/Z AXIS)......... 2,362 IPM
SPINDLE SPEEDS......................... TO 10,000 RPM
SPINDLE TAPER.......................... CAT 50
SPINDLE MOTOR.......................... 59 HP
PALLET SIZE (6 PALLETS)................ 39.4" X 31.5"
MAX LOAD ON PALLETS.................... 3,307 LBS
* HEIDENHAIN iTNC 530 5-AXIS CNC CONTROL
* HIGH PRESSURE COOLANT THOUGH SPINDLE - 1,000 PSI
* 240 POSITION AUTOMATIC TOOL CHANGER
* 6 PALLET POOL ROTAY MAGAZINE (1 IN MACHINE & 5 ON POOL)
CONDITION: EXCELLENT CONDITION - ONLY 1,585 CUTTING HOURS
See additional photos on our web site: http://uen.hsix.com/q/webinv/015870=x,1215
