Fluke 80I-410 dc ac current clamp probe hall effect 600

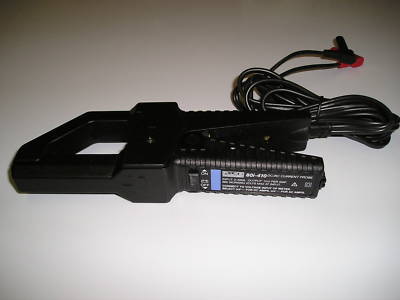

Fluke AC DC 80i-410 Current Probe used.
Fluke 80i-410 DC/AC Clamp-on Hall Effect Current Probe Maximum Conductor Size: one 30 cm (1.18 inch) or two 25mm (0.98inch) diameter The 80I-410 ac/dc current probe extends the ac or dc apacity to 400 amps.
This Hall-effect probe is relatively insensitive to conductor position within the jaws for good repeatabliity.
Physical dimensions are identical to the 80i-400 and will accomodate similar conductors.
The jaws will accommodate a single 750 MCM THHN or two 500 MCM THHN conductors run in parallel.
5A to 400A AC or DC Usable Current Range: 2 A to 600A AC or DC Accuracy: (5% + 2A) DC to 62 Hz Working Voltage: 660V AC rms Maximum Conductor Size: 1 ea 30 mm (1.18 inch) or 2 ea 25mm (0.98inch) diameter
