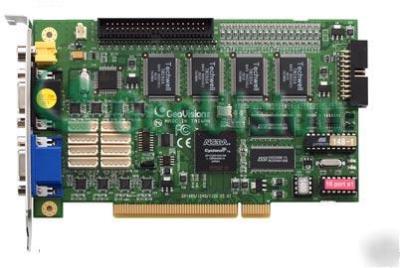

Geovision gv-1120A-x-16 digital video capture card 16
Model/Part Number: GV-1120A-X-16
DB15 x 2 (Video), DB9 x 2 (Audio)
720x480, 720x480 De-interlace, 640x480,
640x480 De-interlace, 360x240, 320x240
720x576, 720x576 De-interlace, 640x480,
640x480 De-interlace, 360x288, 320x240
187.7 x 117.1 (mm) / 7.38 x 4.61 (in)
Note: GV-1120A is currently not compatible with VIA series and ATI series chipset motherboards, and 64-bit Windows operating system.
Minimum System Requirements For One Card
Windows XP / Windows Vista / Windows7 / Windows Server 2008
Windows7 / Windows Server 2008
Pentium 4-3.0 GHz with Hyper-Threading
Windows XP: 2 x 512 MB Dual Channels
Windows Vista / 7 / Server 2008: 2 x 1 GB Dual Channels
Minimum System Requirements For Two Cards
Windows XP / Windows Vista / Windows 7 / Windows Server 2008
Windows 7 / Windows Server 2008
Minimum System Requirements For Turbo Mode
2 x 512 MB Dual Channels (Windows XP)
(Windows Server 2008 / Vista / 7)
ATI Radeon X1300 PCI-E / NVIDIA GeForce 7300 PCI-E
