Pc-based usb digital oscilloscope 5200 3005 LA5034
PC-Based USB Digital Oscilloscope 5200 3005 LA5034
The package contains: 3 pcs Digital Oscilloscopes
Pc Usb Logic Analyzer LA5034 have a sufficient number of input channels capable of simultaneously observing a lot of information or data flow direction control information, and in some way to capture narrow pulse interference
LA5034 has delayed the ability to capture the required observation points around the waveform, in a variety of digital information capture function.
LA5034s have memory capacity, to be able to see the occasional error messages, and the memory can find fault in the source state.
LA5034 with intuitive and flexible displays to facilitate dynamic analysis, can transform the information, you can use the binary, decimal, hexadecimal or ASCII that information to facilitate the repair process and debug.
LA5034 triggered in a variety of ways, can be a very long data stream, the analysis of that part of the information to make accurate positioning, which caught right of useful information for software analysis, it can use its tracking function trigger operation procedures. For hardware, trigger function can be detected in the system and that the interference and Burr.
Max record time Compression mode
TTL,LVTTL,CMOS,LVCOMS,ECL,PECL,EIA
Operating system: Windows 2000, Windows XP
PC-Based USB Digital Oscilloscope DSO-5200
200MSa/S PCBased USB digital PCPCPCPPCPCPCBased
The Digital Storage Oscilloscope DSO 5200
The Operation Manual in English

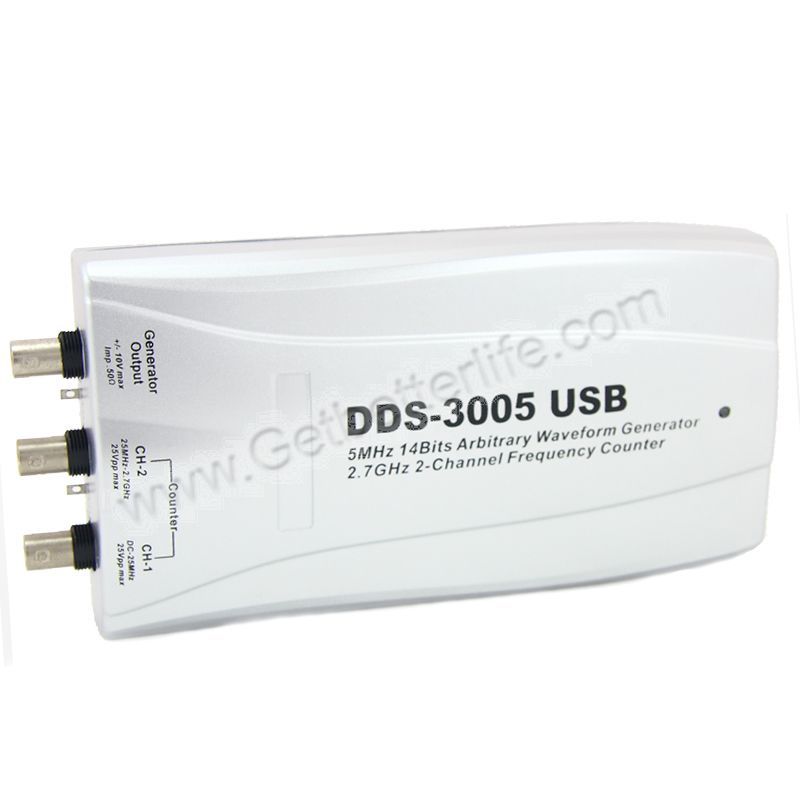

DDS-3005 USB Signal generator, frequency calculator
* It is completely compatible with TEK document format, it can directly read the wavy documents of the oscillograph and the wavy documents edited by TEK wavy editing software to make the its wave reappear.
* One computer can connect many DDS, extend channel easily.
* LabviewVBVCDelphiC++Build Second Design instance
0~50MHz Continuously adjustable, in step of 0.2Hz
5MHz, 1MHz, 100KHz, 10KHz, 1KHz Programmable Control
8 Bits+ Synchronized Signal 1 Bit + External Signal 1 Bit
Operating system: Windows98,Windows Me, Windows NT, Windows 2000, Windows XP
