Sodik AQ325L wire edm machine

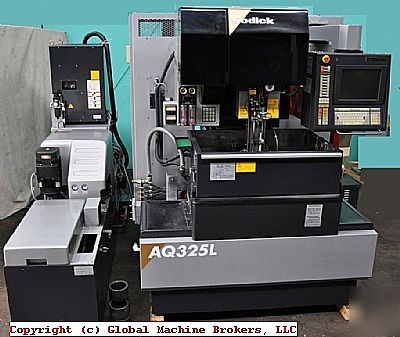

USED SODIK AQ325L SUBMERGED LINEAR MOTOR DRIVE WIRE EDM MACHINE with AUTOMATIC WIRE THREAD
TABLE TRAVEL (X AND Y AXIS): 13.7" x 9.8"
AUXILIARY TABLE TRAVEL (U AND V AXIS): 3.1" x 3.1"
WORK TABLE SIZE (W x D): 23.6" x 15.7"
WORK TANK DIMENSIONS (W x D): 35.2" x 25.5"
MAXIMUM HEIGHT OF WORK PIECE: 8.6" 7.8" SUBMERGE
MAXIMUM WEIGHT OF WORK PIECE : 990 LB, 660 LB SUBMERGE
DISTANCE FROM FLOOR TO TABLE TOP: 38"
WIRE TENSION: 0.66 LB TO 5.06 LB
WIRE FEED SPEED (MAX): 9.8IN/SEC
WIRE DIAMETER: 0.006 TO 0.012
WIRE SPOOL VOLUME (MAX): 13.2 LB
MACHINE TOOL DIMENSION (W x D xH): 64.9" x 74.8" x 80 .3"
MACHINE TOTAL DIMENSION (W x D): 88.58" x86.6"
EXTERNAL DIMENSIONS (W X D X H): 21.65" X 86.6" X 69.68"
FILTERING SYSTEM: 2 REPLACEABLE PAPER FILTER
LN1W CNC CONTROL, USES A WINDOWS NT PLATFORM
40 AMPERE POWER SUPPLY, EF4 ELECTROLYSIS FINE FINISH CIRCUIT
COMPLETE DIELECTRIC FILTRATION SYSTEM
FIXED JAW, MOVABLE JAW, VISE SUPPORT
