South bend 9" metal lathe model a machinist tool chuck
LOOK AT ALL PHOTOS & DESCRIPTION PRIOR TO MAKING AN OFFER, FEEL FREE TO ASK QUESTIONS.

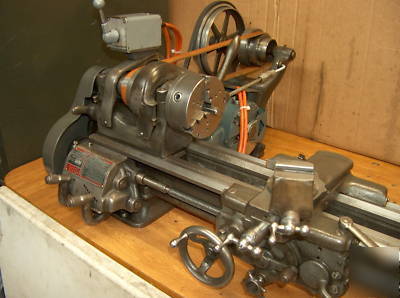

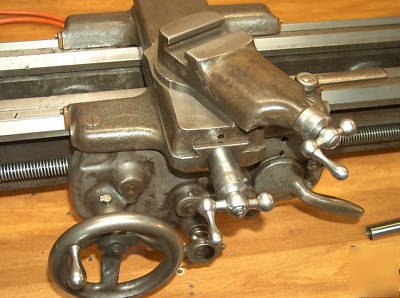

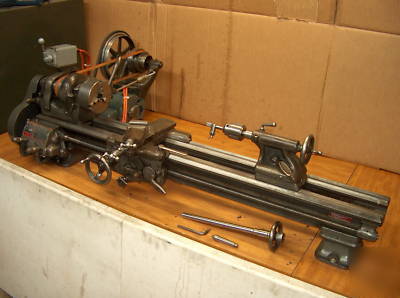

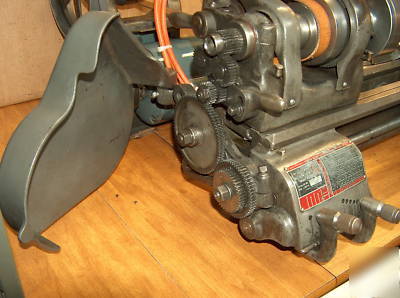

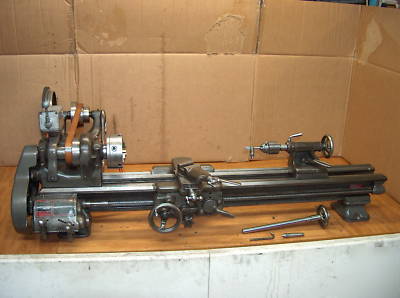

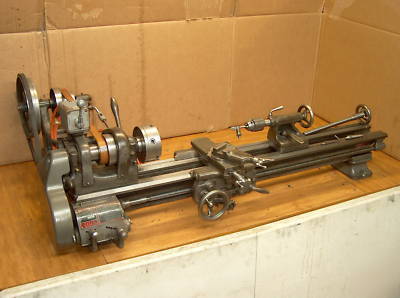

9" X 4-1/2' SOUTH BEND METAL LATHE, MODEL A
58" OVERALL LENGTH, (UP TO 34" IN BETWEEN CENTERS)
BRAND: SOUTH BEND LATHE, MADE IN USA
MODEL A, 9" SWING, 4-1/2 Ft. BED.
HEADSTOCK SPINDLE: 1-1/2" X 8 TPI, (MT #3 INNER), .770" THROUGH HOLE.

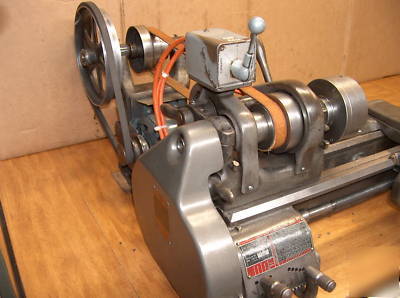

MOTOR: GENERAL ELECTRIC, 1/2 H.P.; 1725 RPM; 7.8 AMPS; 115 VOLTS.
FORWARD/REVERSE SWITCH: CUTLER HAMMER.
UNIT COMES COMPLETELY WIRED, READY TO USE, SWITCH & MOTOR WORKS IN BOTH FORWARD AND REVERSE.

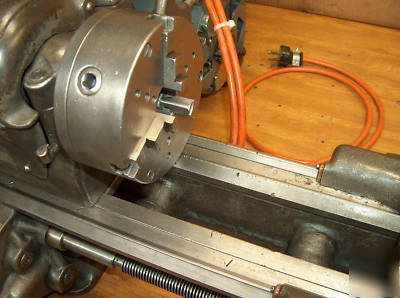

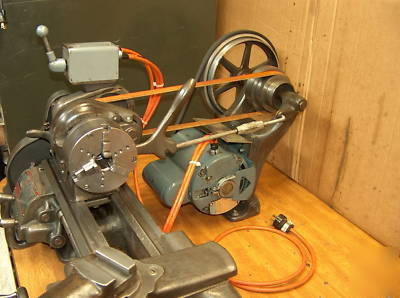

1) 5" DIA. 3 - JAW SELF CENTERING LATHE CHUCK w/ KEY, 1-1/2" X 8 TPI; CUSHMAN, USA.
1) 0-1/2" JACOBS No. 34 CHUCK w/ KEY, MT#2 SHANK.
1) 3C HAND WHEEL/DRAW TUBE, (NO ADAPTERS OR COLLETS)
*KNOWN DAMAGE: (MOSTLY COSMETIC, DOES NOT AFFECT PERFORMANCE);
- LATHE CHUCK HAS SOME DRILL HOLES ON FACE

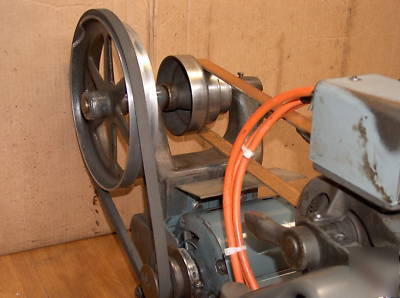

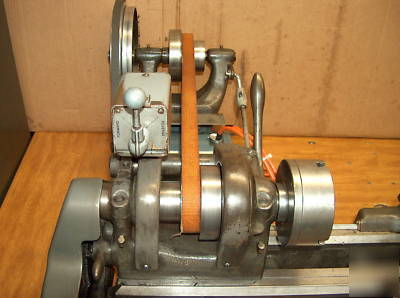

- DRIVE WHEEL PULLEY HAS A 2" LONG CHIP ON LARGER WHEEL (CHECK PHOTOS)
LATHE HAS BEEN TESTED, CLEAN AND WIRED, READY TO USE.
PLEASE LOOK AT PHOTOS FOR MORE DETAILS AND CONDITIONING.
WOOD BENCH/TABLE NOT INCLUDED.
LOCAL PICKUP ONLY: LATHE LOCATED IN WAYNE, NEW JERSEY, 07470
