Ti 13192-sard 2.4GHZ , accelerometer eval board

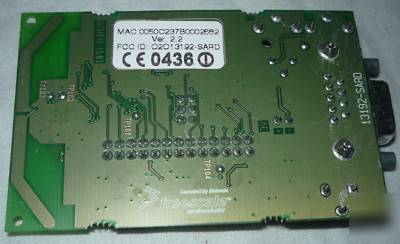

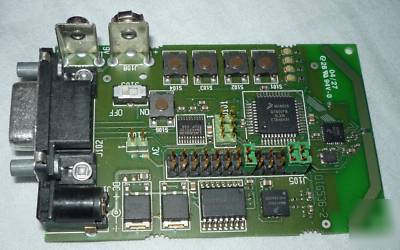

The 13192-SARD is a demonstration board based on the MC13192, 2.4GHz transceiver, MC9S08GT60 MCU, and the MMA6261Q and MMA1260D Acceleration Sensors. The 13192-SARD contains the following interfaces:
4 push buttons (S101, S102, S103, S104)
4 LEDs (D101, D102, D103, D104)
Printed Dipole antenna (refer to AN2731/D for more information)
Background Debug Module (BDM) connection allowing flash programming and in-circuit debug via the included USB Multilink Cable (see USBMULTECHSUM/D document included in the kit for more details).
Power connector (5.5-9 Volts)
3-Volt power connector (MMA1260D Acceleration Sensor disabled)
26-pin header strip (J105), for access to specific RF, MCU, and sensor pins
