Great 2 layers TQFP32/44/64 soic smt prototype board
Press for view in large resolution Universal prototype board: top side
Press for view in large resolution Universal prototype board: bottom side

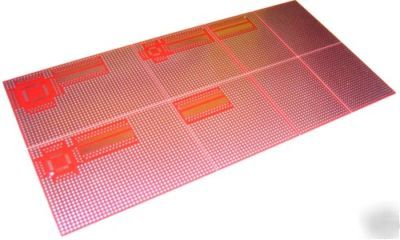

Great 2 layers TQFP32/44/64, SOIC, DIP (DIL) and SMT 0805 prototype board with large prototype area
This 2 layers prototype board can be can be used by developers who want to quickly start working with any TQFP32, TQFP44, TQFP64, SOIC or DIP (DIL) integrated circuit. Really this board consist from 8 small boards and you can always separate them ( snap off - especially for this purpose breal lines are available on the board ).
* 5 large SOIC placements with 64 pins each (32 pins each side) on top side of board. Can be used for mounting 2-3 IC's in SO-14, SO-16, SO-20 or any other IC in SOIC case (for example MAX232 or other). All pins of SOIC-32 placement have pads for soldering any wire or connector (extension pads)
* large quantity of SMT 0805 PCB placement on bottom side of board under each TQFP or SOIC placemet. Can be used for mounting any resistor, capacitor or other component in SMD 0805 (or 1206) case.
* 2 power bus on each side of small board - very useful for supply your circuit
* size 300x150mm (11.8"x5.9")
