4" spdl 72" x lucas 20B-64 horizontal boring mill, #50P
4" Spdl 72" X Lucas 20B-64 HORIZONTAL BORING MILL, #50P

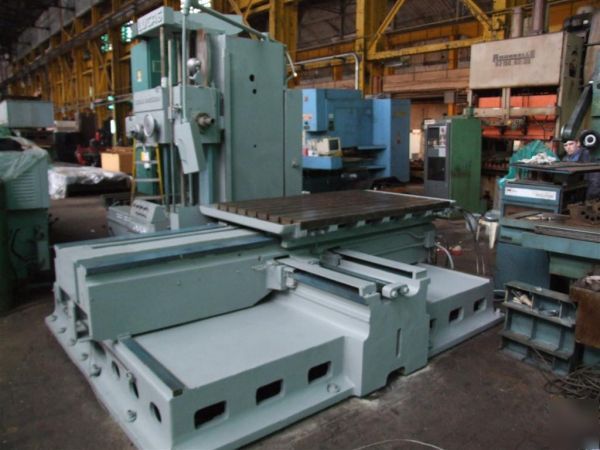

4" Spindle 72" X Axis Lucas 20B-64 HORIZONTAL BORING MILL, #50PDB,3-Axis Newall DRO, Hardened 4-Way
4 LUCAS TABLE TYPE HORIZONTAL BORING MILL,
MODEL 20B-64, S/N: 41B-3621, NEW 1974
DIAMETER OF SPINDLE .................. 4
TAPER IN SPINDLE ..................... NO.50 POWER TOOL LOCK
SPINDLE LONGITUDINAL TRAVEL .......... 24
HEADSTOCK VERTICAL TRAVEL ............ 48
TABLE SIZE ........................... 48 X 74
TABLE CROSS TRAVEL ................... 72
TABLE LONGITUDINAL TRAVEL ............ 48
SADDLE LENGTH ........................ 132
DISTANCE ACROSS 4 BED WAYS ........... 120
SPINDLE SPEEDS (25) .................. 15 TO 1550 RPM
FEEDS (81) ........................... .0001-.925 IPR
RAPID TRAVERSE RATE .................. 112 IPM
APPROX. WEIGHT ....................... 45,000 LBS
DIMENSIONS ........................... 190 x 143 x 116
- 132 OVERSIZED SADDLE LENGTH
- 120 OVERSIZED 4-WAY BED WIDTH
- HARDENED BED AND GROUND WAYS
- DP8, 3AXES NEWALL DIGITAL READOUTS
- 15 HP 3/60/220-440 VOLT MOTOR WITH CONTROLS
Machine Location: WILMINGTON, DE
