Aluminum die cast x - y compound table proxxon 200MM

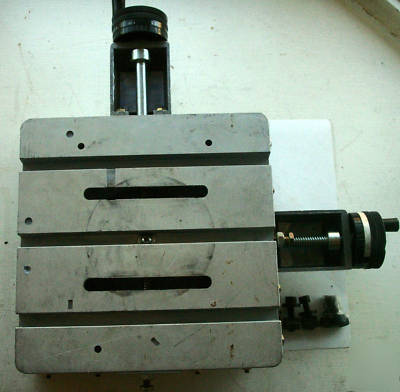

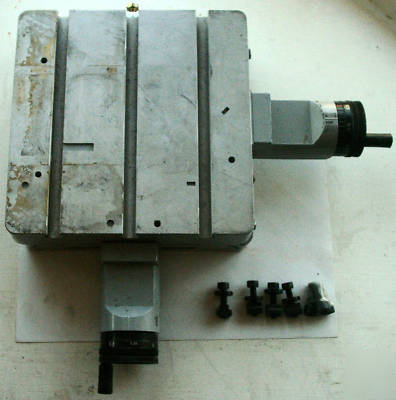

Aluminum Die Case X - Y Compound Table Proxxon 200mm x 200mm 8" x 8"
This is used in great working order, will receive all is pictured.

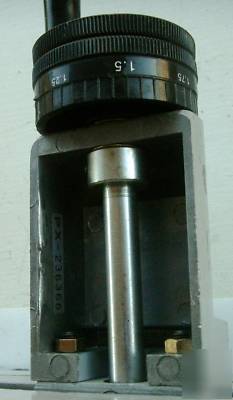

A light duty table that features steel lead screws, brass lead screw nuts, and adjustable gibs on both dovetails. It is for light duty milling applications, or bringing precision positioning to a small drill press.
Below is a Manufacturer s description from a Proxxon ad:

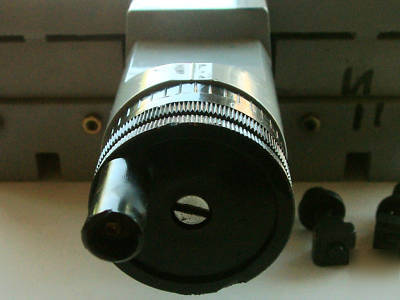

With precision milled dovetail slides, thus also suitable for metal work. For routing, milling, slotting of steel, non-ferrous metal, plastic and wood. Each slide provided with locking screws. Dovetail fittings/gib strips adjustable to eliminate play. Feed adjustments by means of 2 hand wheels with adjustable, graduated dials (one graduation = 0.05 mm). Machined table, 3 T-slots for fastening machine vices and clamping kits. Table 200 x 200 mm. Max. travel 150 x 150 mm. Overall height 75 mm. Weight 4.9 kg.
