New orion flex cts automatic pallet stretch wrapper ( )
Conveyorized 2 Station Automatic Stretch Wrapping Solution

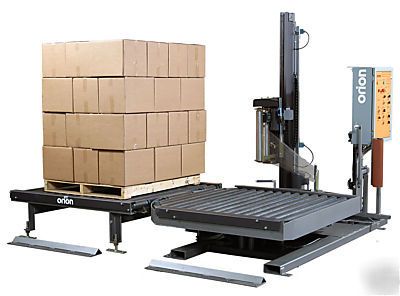

The Flex CTS eliminates the need for an operator to attach & cut the stretch film AND eliminates time-loss from forklift drives watching loads being wrapped. Simply place the pallet-load on the infeed conveyor via forklift, and pull a lanyard switch while backing away. The machine will advance the load into the wrapping zone automatically, freeing the loading zone to receive another load. The machine will wrap the load as you have pre-determined it to do, automatically adapting to the load size and shape. (Within machine specifications)
OPERATIONAL features on the Flex CTS
Motor Driven Powered Conveyors (No load pushing or dead rollers!)
Easy to use Touch-Screen HMI (No maze of switches & pushbuttons!)
Lanyard Switch Included for Remote Cycle Start
Automatic Film Clamping & Cutting (No operator needed!)
Film Tail Press-to-Load (Helps prevent film unraveling!)
Film Roping Bar to Lock Load to Pallet
DURABILITY features on the Flex CTS
Precision Ring Bearing Turntable Support (No Casters!)
Direct Chain/Sprocket Turntable Drive (No belt!)
AC Motors (No DC motor brushes!)
Power Track Film Carriage Cable Carrier
Structural Steel Tube Base Frame
SAFE interaction features on the Flex CTS

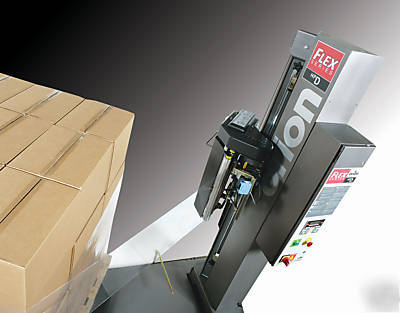

InstaThread Film Carriage, Drop-In Film threading
Film Carriage Down Obstacle Detection, stops drive
Film Carriage Drop-Lock device, prevents free-falling
FLEX CTS Standard Specifications
Maximum Load Size 48"W x 48"L x 72"H
Minimum Load Size 36"W x 36"L x 20"H
Weight Capacity Up to 4,000 Pounds
Fully Automatic Film Tail Clamping, Cutting & Press-to-Load
Combination Impulse Wire Film Cutting and Pneumatic Film Press-Down System
Easy to use Touch-Screen HMI Panel Display for easiest operator use
Industrial Switches for E-Stop & Main Power
Precision Ring Bearing Turntable Support System
Heavy Duty Direct Chain & Sprocket Drive
Positive Alignment home positioning & locking feature
One 5' Powered Loading Zone Conveyor Included
18" Height to Top of Rollers
52" Effective Conveyor Width
2.5" Diameter Rollers on 3.75" Centers
Driven Via Heavy Duty Loop to Loop Chain
FLEX CTS Specifications cont. & Proposal Summary
80 PSI clean/dry Compressed Air @ 3 CFM
1. Pallet load is set onto the loading zone (infeed conveyor) via forklift
2. Driver backs away from wrapper and pulls lanyard switch to start the wrap cycle
3. Once load advanced into turntable wrap zone, another load may be loaded onto the loading zone
4. When wrap cycle is complete, driver removes wrapped load from the turntable wrap zone
Flex CTS base machine price $25,400.00
NOTE: The standard layout and flow of the CTS is infeed conveyor loading and turntable unloading. By referencing the layout drawing of the CTS, you will see that, on the turntable, the loads (outlined boxes of 48 x 48 and 30 x 30 ) are justified to the load reference corner . In order to ensure optimal film tail treatment on each load, the loads should be justified to the clamp side of the conveyor when loading. When the system is activated by pulling the lanyard switch after loading, the machine automatically transfers the load from the infeed conveyor to the turntable conveyor, stopping the load with the leading edge in the position shown as the load reference corner in the drawing. By justifying the load to the clamp side of the conveyor and stopping the leading edge in the same place each time, the load is always consistently positioned for optimal film tail treatment (clamp / cut / press).
