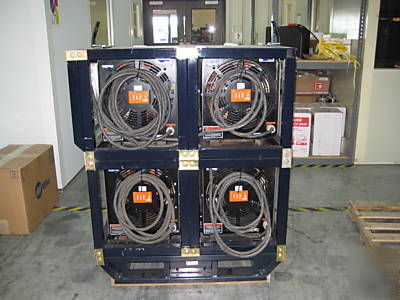

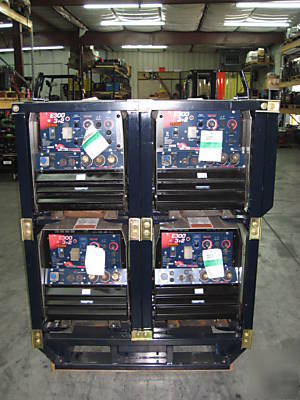

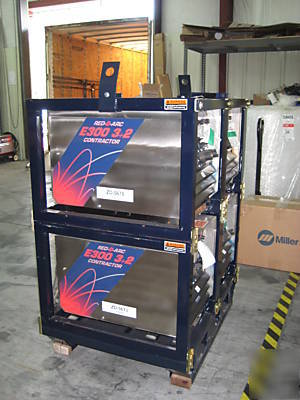

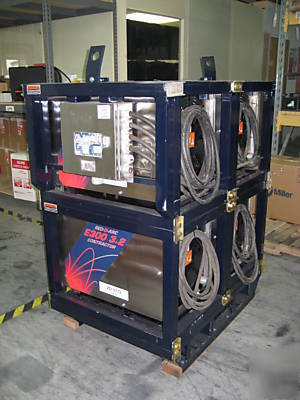

Used red-d-arc E300 3+2 cc/cv welder 4-pack 460/575VOLT


2,000 Watts, 115 VAC Auxiliary Power per Module

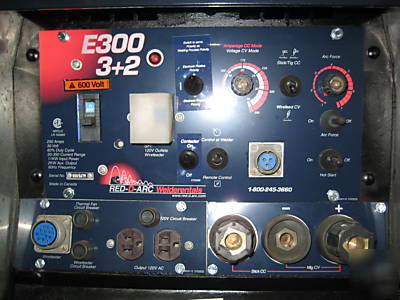

Arc Force, Hot Start, Continuous Current Control
Full Remote Control Capabilities
The highly efficient design of the E300 3+2 permits the 4Pak version to be operated with a 60 amp service and the 6Pak version from a 100 amp service with either 460V or 575V 3 phase power. With up to 350 amps of DC welding current, full welding output controls, 115 VAC auxiliary power for tools, compact size, and multi-process capability, these Paks are the ideal choice for multiple operator use.
DC Amperage Range: 20 A at 20 V - 350 A at 34 V
Rated CC Output: 350 A at 34 VDC, 20% duty cycle
250 A at 30 VDC, 60% duty cycle
4Pak Specifications 6Pak Specifications
Weight: 1402 lb (635.9 kg) Weight: 2168 lb (983.4 kg)
H: 54.5" (1384 mm) H: 76.5" (1943 mm)
W: 44.5" (1130 mm) W: 44.5" (1130 mm)
D: 32" (813 mm) D: 32" (813 mm)
Flat Rate freight to the lower 48 just $199
This unit will NOT operate on 230 Volt Power.
