Wj mcsds board 910623-001 watkins johnson circuit card

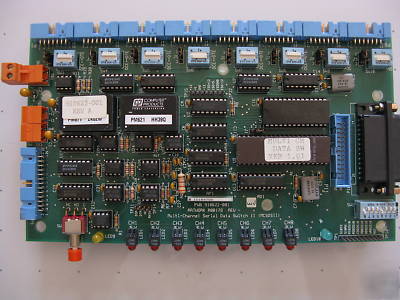

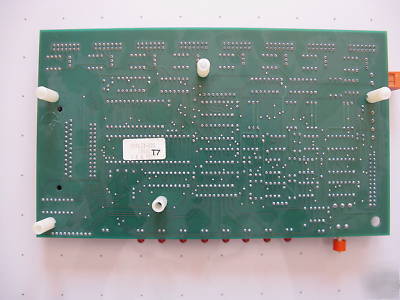

Watkins Johnson circuit board card for the model WJ999, WJ1000 & WJ1500 series of deposition tools. This is the MCSDS card, the Multi-Channel Serial Data Switch board card WJ part number 910623-001 and schematic number 910624-001. This card is the 17 card located in the main electrical box and routes data back and forth between the PC and the controllers. The MCSDS acts as a software-controlled 1-8 position switch, allowing the PC to communicate seperately with each controller by polling each, one at a time. Card is screened PWB 910622-001 as this is the card artwork P/N.
This card is original WJ mfg and unused in its anti-stat bag. I didnt want to open bag to take pic on card.
Included with the card will be:

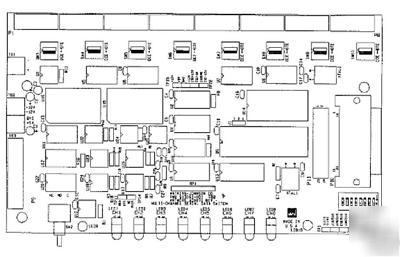

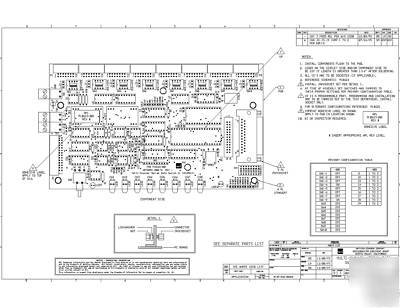

-the PDF version of the card 910623-001 on optical disc and additional hard printed copy which includes BOM listing all parts on card

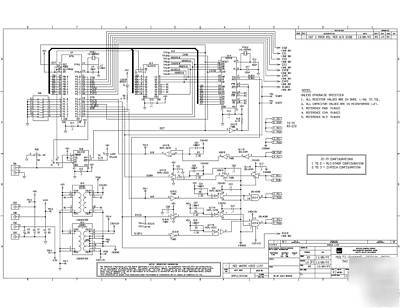

-the PDF version schematic 910624 on optical disk and additional hard printed copy
-a hard copy of the exploded view location of the cards in the electronic enclosure
-there are no board calibration procedures for this card
-a hard copy of the alternate configurations for this card which designates switch and jumper position
-a hard copy of the MCSDS designating LED number, condition and status (eg red, green, flashing
-the EPROM chip in U9 is VER 1.01
This card from WJ is $2447.00 at current price:
PCB ASSY,MULTI-CHANNEL SERIAL DATA SWITCH II -APL
Watkins Johnson was formerly SVG, formerly ASML formerly Aviza and now a division of Sumitomo
