Johnson controls temperature transmitter #t-5002-201

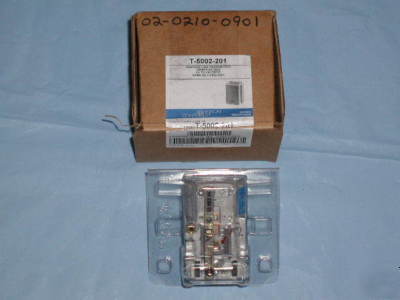

Johnson Controls Pneumatic Temperature Transmitter #T-5002-201
The T-5002 Pneumatic Temperature Transmitter measures temperature and transmits a proportional 3 to 15 PSIG (21 to 105 kPa) output signal to a receiver-controller or Building Automation System for automatic temperature control..
* Direct Acting, Space Temperature Model.
* Sensitivity: 0.24 PSI / F
* Supply Pressure: 20 1 PSIG (140 7 kPa)
* Output Pressure: 3 to 15 PSIG (21 to 105 kPa)
* Air Consumption: 20 SCIM (5.5 mL/s)
* Output Flow Capacity: 400 SCIM (109 mL/s)
* Ambient Temp. Limits: -20 to 130 F (-29 to 54 C)
* Air Connections: Barbed Fittings for 5/32" O.D. Polytubing
