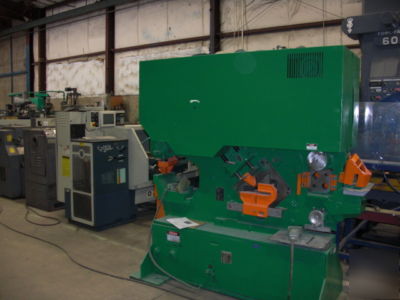

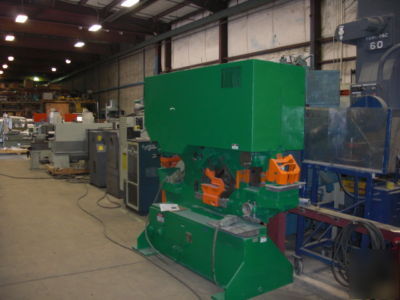

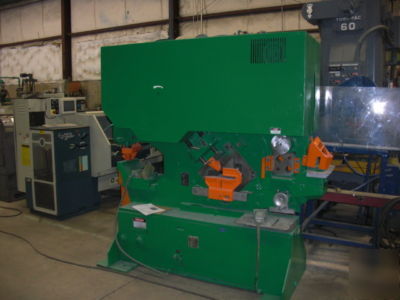

Mubea 120 ton kbl 1100 ironworker
Mod: KBL 1100 Serial Number 050676178317
Tonnage........................................ 120
Throat depth.................................. 20"
Stroke............................................ 1-1/4"
Strokes per minute......................... 46
Max. hole thru 1" (mild steel)..... 1-3/8"
6 inch (mild steel)..................... 3/4"
10 inch (mild steel)................... 9/16"
Max. square (mild steel)............ 2"
Max. round (mild steel)............. 2-1/4"
Max. thickness (mild steel)........ 5/8"
Blade width.............................. 2-1/4"
Blade depth............................. 3-1/4"
Max. 6 x 6 @ 90 (mild steel).... 1/2"
Max. 4" x 4" @ 45 (mild steel).. 1/2"
Voltage.................................... 208-220 / 440 /480
Phase...................................... 3
Cycle....................................... 60
Horse power............................ 10
Length..................................... 86"
Width....................................... 35"
Height...................................... 85"
Weight........................................... 9,680 Lbs
