New hdsp-0960 - small green led numeric smart display
These are great for displaying BCD codes.

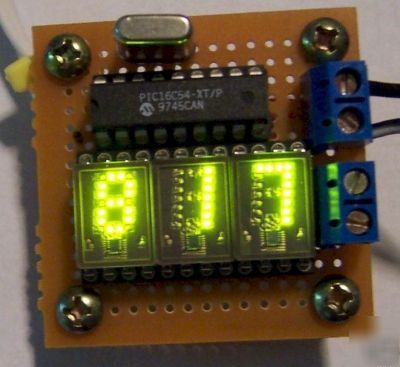

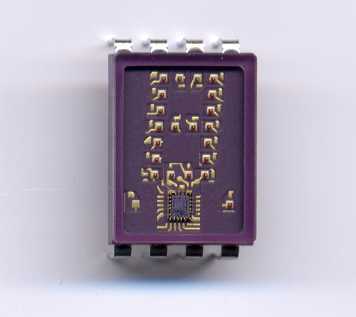

There are 8 pins for the display and the face is clear glass.
These are new parts made by HP. Data sheet available. DigiKey is currently selling them for over $39 each.
The HP hdsp 0960 are solid state numeric displays with on board decoder / driver and memory provide 7.4 mm (0.29 inch) displays for reliable, low cost methods of displaying digital information.
They are TTL compatible, operating at 5 volts dc.
4 x 7 Dot Matrix Array in a standard Dual In Line Package (DIP)
You can fit 5 of these displays in a standard 40 pin DIP socket.
They decode positive 8421 BCD logic inputs into characters 0-9, an sign, a test pattern and 4 blanks in the invalid BCD states.
The display dimensions are 0.400 (10.2 mm) by 0.55 (14.0 mm) , being 0.11 (2.8 mm) thick.
Pin 6 is the Ground connection
