New ( ) pallet stretch wrapper orion (low profile model)

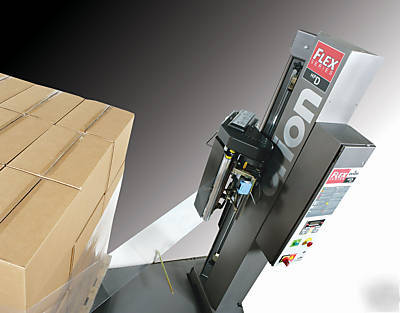

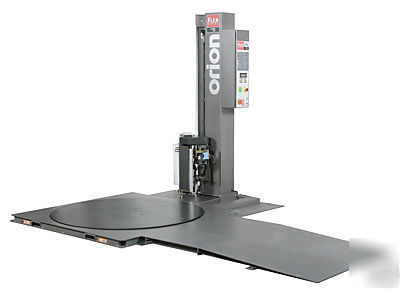

Low Profile Deluxe, Semi-Automatic, Heavy-Duty, Stretch Wrapping Machine
The Flex LPD provides your operation the most COST-EFFECTIVE, FEATURE-RICH, DURABLE and SAFE to operate semi-automatic wrapper on the market today.
The operator simply attaches the film to the load and presses the start button to begin the wrap cycle. After the pallet load is wrapped, the operator cuts the film and removes the load with a pallet jack, electric walkie or forklift. (InstaCut Automatic Film Severance is also available) The machine will wrap the load as you have pre-determined it to do, automatically adapting to the load size and shape. (Within machine specifications)
FUNCTIONALITY, UPTIME and SAFE interaction are all critical to your operation! The Orion Flex series designs include many standard features to enhance the machine s performance, uptime and safe operator interaction. (Often options with competitive models)
OPERATIONAL features on the Flex LPD
Easy to use Digital HMI Display (No maze of switches & pushbuttons!)
Separate Top / Bottom Wrap Counts adjustable from 1-9
Separate Up / Down Film Carriage Speed Controls (No single speed control!)
Automatic Film Force-to-Load Control (No load cells or strain gauges!)
Automatic Load Height Detection Photocell
Secondary Turntable Speed Mode
DURABILITY features on the Flex LPD
5,000 Pound Turntable Load Weight Capacity
Multiple DuraGlideTM Turntable Support Bearings (No cam followers!)
Steel Deck Surrounding Turntable Plate (No exposed turntable edge!)
Direct Chain/Sprocket Turntable Drive (No belt!)
Industrial PLC Controller (No proprietary microprocessor!)
AC Motors with Variable Frequency Drives (No DC motor brushes!)
Power Track Film Carriage Cable Carrier
Structural Steel Channel Base Frame
SAFE interaction features on the Flex LPD

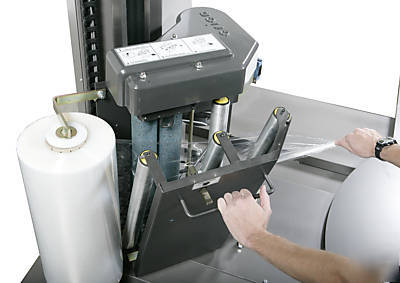

* InstaThread Film Carriage, Drop-In Film threading
* Film Carriage Down Obstacle Detection, stops drive
Film Carriage Drop-Lock device, prevents free-falling
FLEX LPD Standard Specifications
Maximum Load Size 55"W x 55"L x 80"H
Weight Capacity Up to 5,000 Pounds
Stretch Film 20 Wide, up to 110 gauge
Digital Human-Machine-Interface (HMI) Panel Display for easiest operator use
Telemecanique Industrial Programmable Logic Controller (Non-Proprietary)
Industrial Pushbuttons & Switch for Cycle Start, E-Stop & Main Power
Separate Top and Bottom 1-9 Wrap Count Selectors
Separate Film Carriage Up/Down Speed Controls
Photocell for Automatic Load Height Detection
NEMA 12 Dust/Splash-Proof Control Enclosure
Digital Control Settings for motor speeds
Manual Jogs for motorized functions
Film Carriage, Stretch & Delivery
20" Orion Insta-Thread Powered PreStretch Film Delivery System
260% Standard Pre-Stretch (Sprocket changeable from 100% to 395%)
AUTOMATIC Film Force-to-Load Control works like Cruise Control
Shock Absorber Film Dancer Bar with Non-Wearing Sensor
Precision Polyurethane Pre-Stretch Rollers for Consistent Film Yield
AC Drive Motor with Variable Frequency Drive
No Lube Belt Lift/Lower system with Drop-Lock Technology
Multi-Point UHMW Precision Carriage Guidance System
Insta-Sense Film Out/Broken Sensing Logic
Electronic Film Tension Control Adjustment
Easy Drop-In Film Threading Design
Turntable Structure, Support & Drive
63" Diameter x 3/8 Diameter Structural Steel Plate
Surround Steel Deck protecting Turntable Edge
Multiple DuraGlideTM Turntable Support Bearings
Up to 15 RPM Variable Speed with adjustable Soft-Start
Heavy Duty Chain Drive with Self-Adjusting Automatic Tensioner
Electronically Adjustable Acceleration/Deceleration (Soft Start)
Dynamic Positive Alignment home positioning feature
3-1/16" Height Floor to Top of Turntable
All Steel Construction Throughout
Forklift Portable from Front & Rear Base Design
Structural Steel Channel Frame front to rear
Adjustable Film Roping Bar Curls Film into Rope to Lock Load To Pallet
115/1/60, 20 Amp Electrical Service
FLEX LPD Operational Sequence & Proposal Summary

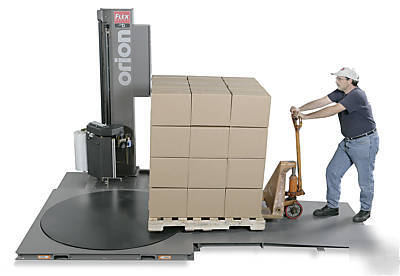

1. Pallet load is set onto the turntable platform via pallet-jack, electric-walkie or *forklift
(*NOTE: In forklift only applications, Flex HPD (High Profile) model is recommended)
2. Operator attaches film to pallet or load and presses start button
3. When wrap cycle is complete, operator cuts film
4. Driver removes wrapped load
Options Available - Some options may increase lead times
Ramp for Electric-Walkie Loading/Unloading $795.00 each
In stock in Tampa, Florida 33605.
Transport Cost is NOT included
Set-Up & Training is offered by authorized Orion Distributor
4 years on all Major Components
Lifetime on InstaThread Stretch Rollers
FLEX SERIES WARRANTY EFFECTIVE SEPTEMBER 1, 2007
Damage in transport is the responsibility of the carrier and is not covered under our warranty.
For most components valued at under $300 list price, Orion does not require that the defective component be returned. All defective components valued at $300 or more list price must be returned to Orion s Memphis service center. It is at Orion s sole discretion as to whether any given component must be returned, regardless of its value, for the purpose of determination of warranty status and the nature of the defect. Furthermore, confirmation that the part does not need to be returned must be provided by Orion at the time of order placement.
Orion recommends that the purchase of an Orion Production Assurance Kit (SPARE PARTS) be considered to maximize system uptime. See your Orion distributor for details.
For More info: mike.****@quickpakinc.com
http://quickpakinc.com/index.html
