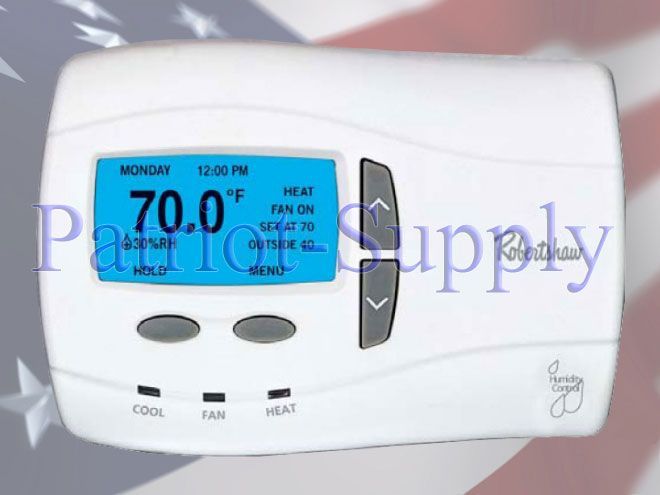

Robertshaw 9851I digital programmable thermostat
ROBERTSHAW 9851I 24V PROGRAMMABLE THERMOSTAT GAS, ELECTRIC, OIL, HEAT PUMP WITH HUMIDITY AND DEHUMIDIFICATION CONTROL
Complete Temperature and Humidification / Dehumidification Control
Electrical rating: 24 Volt AC (18-30 VAC)
1 amp maximum load per terminal (relay outputs)
3 amp total maximum load (all terminals combined)
Temperature control range: 45 - 90 F (7 - 32 C)
Auto Changeover deadband: Selectable 2 to 8 F
Temporary temperature override: 3 hour maximum or next setpoint
Remote sensor capable: 1 indoor and 1 outdoor sensor
System configurations: Single-stage gas, oil or electric
heating/cooling systems and single stage heat pump
Terminations: R, W1, Y1, B, O, G, C, IS, OS, H
Integrated Humidity Sensing Automatically adjusts indoor humidity levels, prevents condensation and maintains desired comfort level.
Auto Changeover Automatically adjusts between heating and cooling cycles to maintain optimal comfort.
Worry-Free Memory Storage Even during power outages, the thermostat maintains setpoint and programmed parameters.
Fully Programmable 7 day, 5/2, 5/1/1 or 24 hour programming menus.
Three Level Security Secure protection against unwanted changes to the programming menus, temperature or set-up functions.
Programmable Fan Energy cost savings. Allows user to set and provide continuous circulation for optimal comfort.
Intermittent Fan For minimum hourly fan circulation rates for optimal filtration with minimal energy use.
Three Hold Settings Permanent program override, a temporary 3 hour override or a temporary override adjustable from 1 to 12 hours.
