2 - watts 100XL temperature pressure relief valve 3/4"

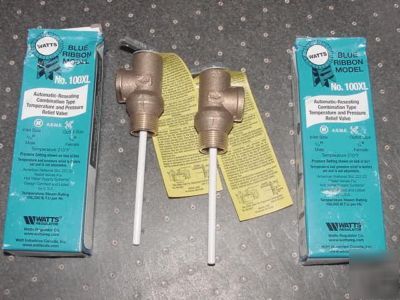

2 - Watts Automatic-Reseating Combination Type Temperature and Pressure Relief Valve
Series 100XL Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 100,000 BTU/hr.
They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever.
Series 100XL is ASME rated and CSA listed.
Temperature Relief: 210 F (99 C)
Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar)
Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar)
3/4" Male Inlet, 3/4" Female Outlet
Initial Quantity of 17 Orders of 2 Units Available
