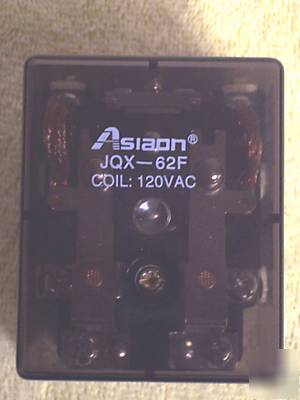

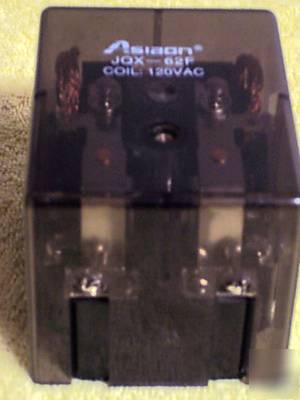

Asiaon JQX62F voltage power relay 120V 80A-120A 2HP
(LWH) Outline Dimensions: 84x68x66mm
Contact Rating: 80A 300/AC, 80A 30VDC, 120A 250VAC - Contact Resistance or Voltage drop: 50 - Max Switching Power: 2400W 24000VA - Max Switching Voltage: 120vdc 500vac - Max Switching Current:80A, 120A - Mechanical Operation Life: 1 107 - Electrical Operation Life: 1 104 - Coil power consumption: 3.6W to 6.0VA - Coil Rated Voltage: 6 220VDC 6 380VAC - Pickup voltage: 75% (DC) rate voltage, 80% (AC) rated voltage - Release votage: 10% (DC) rated voltage, 30% (AC) rated voltage -.
Action time: 30ms - Release time: 30ms - VDC (max) Coil Maximun VoltageVDC: 120% rated voltage - Insulation Resistance 1000 (at 500V) - Dielectric Strength (Between contacts and coil) 2500VAC - Shock Resistance: 10G - Vibration resistance: 10-555hz 10G double amplitude 1.5mm - Ambient Temperature: -40 ~ +60 - Relative Humidity: 85% (at 40)
Let me know if you need more information, or pictures, to make your purchase
.Low, low starting price, with NO RESERVE
