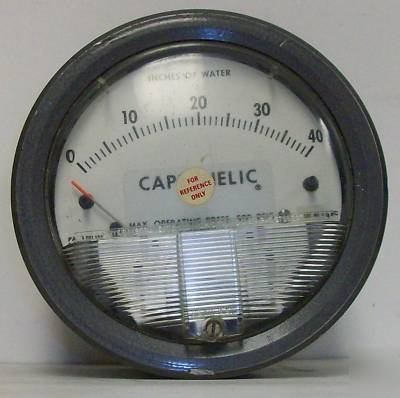

Dwyer capsuhelic differential pressure gauge 4040
Item Title: Capsuhelic Differential Pressure Gauge
Aluminum Case: Air and Compatible Gases and Oil Based Liquids.
Housing: Die Cast Aluminum with Impregnated Hard Coating, Standard.
Accuracy: 3% of Full Scale at 70 F (21.1 C).
Temperature Limits: 20 to 200 F (-6.67 to 93.3 C).
Size: 4" (101.6 mm) Diameter Dial Face.
Mounting Orientation: Diaphragm in Vertical Position.
Process Connections: 1/4" female NPT high and Low Pressure Taps, Duplicated - One Pair Top for Air and Gas, and One Pair Bottom for Liquids.
