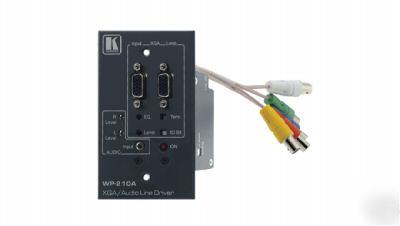

Kramer wp-210A vga-uga video line amplifier wall plate
Manufacturer: Kramer Electronics Model/Part #: WP-210A
The WP-210AL is a line driver for computer graphics video with resolutions from VGA through UXGA and higher along with stereo audio signals. The set-up controls are located on the front panel.
* High Bandwidth - 350MHz (-3dB)
* Inputs - 15-pin HD (for VGA/UXGA) and 3.5mm (for stereo audio)
* Looping Input - VGA/UXGA
* Input Signal Termination
* Outputs - RGBHV (on BNCs) and Terminal block (for Balanced stereo audio).
* Front Panel Controls - All controls are located on the front panel for convenient adjustment.
* Level (Gain) and EQ Peaking Controls.
* Selectable Sync Input Impedance - 75 (analog) or 510 (TTL)
* Audio Level Controls - Left & Right.
* Active Input LED Indicator
* Wall Plate Size - Single gang.
* Front Panel Connections - 15-pin HD (for VGA/UXGA) and 3.5mm (for stereo audio) inputs
* Rear Panel Connections - 5 BNCs and terminal block (for Balanced stereo audio).
