New 63†dalian/dmtg vertical boring mill

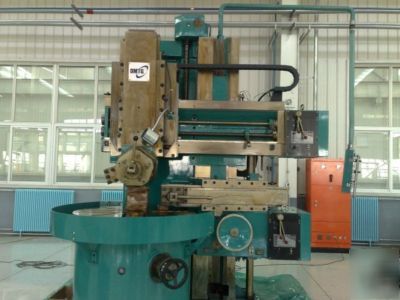

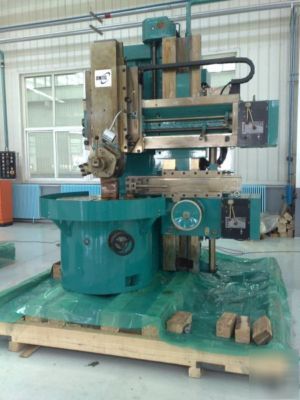

(1 NEW) 63 DALIAN/DMTG Vertical Boring Mill, Model VTL61160
Max. swing without side head 63
Max. swing with side head 55.12
Cutting force for vertical head 25 KN
Cutting force for side head 20 KN
Horizontal travel of rail head 35.43
Vertical travel of turret head slide 25.6
Horizontal travel of side head 25.6
Vertical travel of side head 35.43
Vertical travel of cross rail 31.5
Tool shank section 1.18 x 1.57
Swivel pentagon turret head on rail
R.H. side head w/ square tool holder
T-Slotted table with set of (4) faceplate jaws
40 HP Main Drive Motor w/ controls
Machine Dimensions: 104 x 104 x 120 High
