New star electric star-max 24" char broiler 5124CD

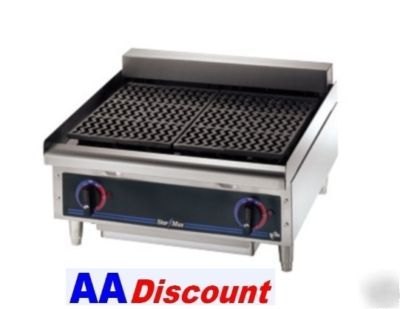

STAR MAX ELECTRIC 24 RADIANT BROILER
New Star Ultra-Max 24" Radiant-Broiler model # 5124CD. This broiler is ideal for use in clubs, pubs, restaurants or steak house. The Star 5124CD Star-Max radiant char-broilers are designed for high volume and reliability. Whether it's steak, chicken, hamburger, sea food or other menu items; Star's heavy-duty Star-Max char-broilers will fulfill your back-of-the-house cooking requirements.
* Star-Max Electric Char-Broilers are designed for the most demanding foodservice applications while providing years of maintenance free operation.
* Two types of heat transfer, radiation direct from elements and conduction through the grates, provide even heat distribution for maximum cooking performance.
* Grate size approximately 24" X 16.5"
* Over all size of unit: 24" Wide X 25-5/8" Depth X 14-1/4" Height
* High performance, sheath type heating elements, (4 on the 24 model) provide high speed char-broiling to accommodate high volume operations.
* Power Requirements: 208 Volts\31.8 Amp or 240 Volts\27.5 Amp (6600 watts), single phase
* Infinite control every 12 of cooking surface for precise temperature control.
* Heavy-duty cast iron grates are removable for fast and easy clean up.
* Swing-up heating element assembly can be locked in a vertical position for easy and safe cleaning.
* Cool to the touch stainless steel bull nose front provides knob protection and a comfortable work zone.
* Heavy-duty 4 adjustable legs to match the height of other Star-Max equipment in your line.
Star-Max Electric Char-Broilers are constructed of polished stainless steel and feature a 1 stainless steel wrap around splash guard, double wall aluminized steel side panels, stainless steel front control panel with black polycarbonate faceplate and stainless steel bull nose front. Units operate on 208V or 240V 1 phase and 3 phase with 1-3/8 diameter hole in bottom rear panels allow for 1 phase & 3 phase conduit.
Star-Max Electric Char-Broilers are covered by Star s one year parts and labor warranty.
