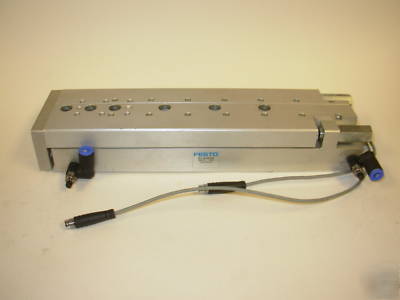

Festo mini slide w/ precision guide 125MM stroke nice
Item Title: Mini slide w/ Precision Heavy-Duty Ball-Bearing Guide & Proximity Sensors
* Adjustable end-position range/length 12 mm
* Operating mode of drive unit Yoke
* Cushioning P: Flexible cushioning rings/plates at both ends
* Guide Ball bearing cage guide
* Design structure Yoke kinematics
* Position detection For proximity sensor
* Working pressure 1 - 10 bar
* Mode of operation double-acting
* Operating medium Dried compressed air, lubricated or unlubricated
* Corrosion resistance classification CRC 1
* Ambient temperature -20 - 60 C
* Impact energy in end positions 0.3 Nm
* Theoretical force at 6 bar, return stroke 218 N
* Theoretical force at 6 bar, advance stroke 242 N
* alternative connections See product drawing
* Mounting type with through hole
* Materials note Free of copper and PTFE
* Materials information for cover Wrought Aluminum alloy
* Materials information for seals HNBR
* Materials information, housing Wrought Aluminum alloy
Materials information for piston rod High alloy steel, non-corrosive
Condition: Used in Good Working Condition. Slides very smoothly thanks to the Precision Heavy-Duty Ball-Bearing Guide
Product Link: https:// /cat/en-us_us/data/doc_enus/PDF/US/SLT-SLS-SLF_ENUS.PDF
