Tektronix CSA803A communication signal analyzer mf

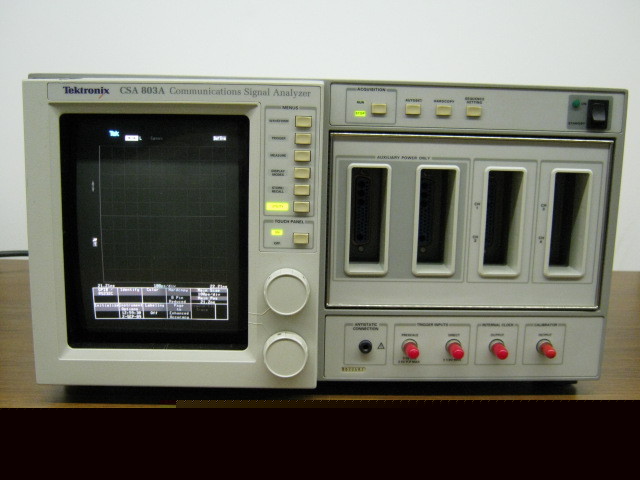

Tektronix CSA803A Communication Signal Analyzer MF
The CSA 803A Communications Signal Analyzer is designed for viewing communication signals up to 50 GHz.
Histogram, masking testing, and color-graded display are included to form an ideal tool for analyzing eye diagrams.
The CSA 803A provides many automatic measurements analyses, including Extinction Ratio, FFT, and Autoset to industry standard Masks. The CSA 803A offers TDR, 10 GHz triggering and 2.0 ps RMS jitter (1.3 ps typical).
* DC to 50 GHz Bandwith (7 ps Rise Time) (PI dependent)
* High Resolution and Repeatability
* Automatic Statistical Analysis
* 38 Standard Communication MASKS
