128M ARM9 MINI2440 S3C2440 + 3.5" tft touch screen lcd

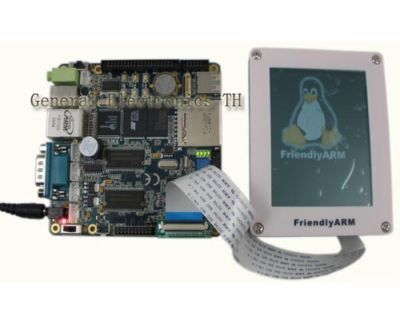

ARM9 Board mini2440 S3C2440 + 3.5" TFT LCD Touch Screen
The MINI2440 is an effecient ARM9 development board with a comprehensive price, it characterizes simple method and high performance-price ratio. Based on the Samsung S3C2440 microprocessor, it embodies professional stable CPU core power source chip and reset chip to ensure the stability of the system operation. The PCB on the MINI2440 board is designed to be 4-layers board, adopting the ENIG technology and professional equal-length wiring to ensure the completeness of the signals of the key signal wires; and manufactured and released under stringent quality control plans. With the help of this detailed manual, users are supposed to become proficient in the development process of embedded Linux and WinCE operating system, they are supposed to get the foundation, so long as they have obtained the basic and necessary knowledge about the C language, in two weeks.
Samsung S3C2440A 400MHz, Max freq. 533Mhz
4 wire resistive touch screen interface
Up to 4096 color STN, 3.5 inches to12.1 inches, up to 1024x768 pixels
Up to 64K color TFT, 3.5 inches to 12.1 inches, up to1024x768 pixels
In box 256K color 240x320/3.5 inches TFT screen, with touch screen
1 x 10/100M Ethernet RJ-45(DM9000)
3 x Serial Ports(1 RS232 with CTS and RTS)
1 x Stereo audio out, 1 Micro In
1 x POT can be used for A/D converter adjust
1 x Power In(5V), with switch and lamp
S3C2440 board (Preload with Linux)
TFT LCD: 3.5" 240x320, with touch panel
Parallel port wiggler JTAG emulator(for H-JTAG)
DB9 Serial Converter
5V power adapter
DVD-ROM with product reference
Touch Pen for 3.5" touch panel
