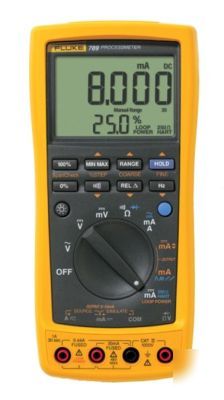

Fluke 789 process meter digital multimeter calibrator
Fluke 789 DMM And Loop Calibrator
* HART mode setting with loop power (adds 250 ohm resistor)
* 1,200 ohm drive capability on mA source
* Enhanced backlight with two brightness settings
* 0-100 % mA Span Check buttons to toggle between 4 and 20 mA
* Infrared I/O serial port compatible with FlukeView Forms Software Version 2.1 (available Feb. 2003)
* Externally accessible fuses for easy replacement
* DMM designed to meet 1000 volt IEC 1010 CAT III standards
* Precision 1000 V, 440 mA true-rms digital multimeter
* Frequency measurement to 20 kHz
* Min/Max/Average/Hold/Relative modes
* Diode Test and Continuity Beeper
* Simultaneous mA and % of scale readout
* 20 mA dc current source / loop calibrator / simulator
* Manual Step (100 %, 25 %, Coarse, Fine) plus Auto Step and Auto Ramp
Fluke combined a loop calibrator and a DMM to give process technicians double the power in one tool (the Fluke 787). Now we made it even better the ultimate loop calibration multimeter the Fluke 789 ProcessMeter. The 789 has a display that's not only twice as large, but also twice as bright with two levels of backlighting. With its built in, selectable 250 ohm HART resistor, it eliminates the need to carry a separate resistor with you. Now process technicians can do a lot more while carrying a lot less.
