New bw TX150 low-power fm broadcast transmitter -in-box

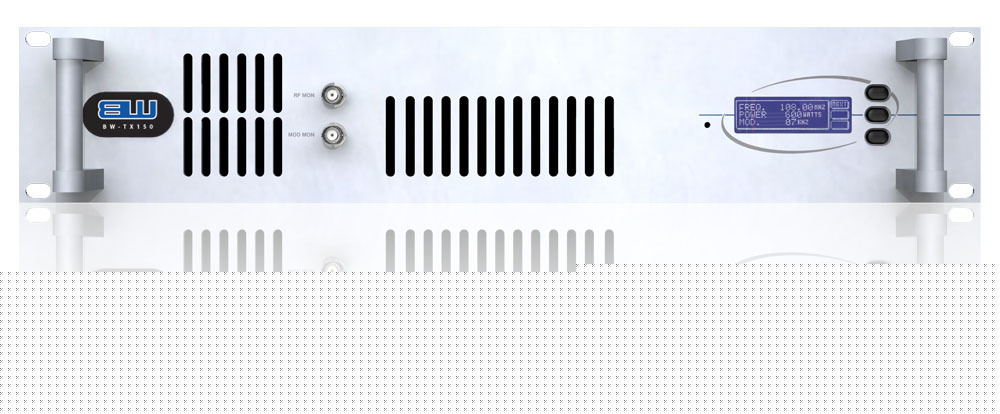

BW TX150 FM Broadcast Transmitter New In Box
We are pleased to offer a BW Broadcast TX150 FM transmitter. This item is new and unused in the box with all the BW paperwork.
The TX150 FM transmitter is ideally suited for low-power radio stations that demand BW Broadcast quality. Integrated single box solutions incorporating the exciter, RF amplifier, power supply, stereo encoder and audio limiter, the TX150 can also serve as an exciter for driving RF amplifiers.
Designed for pristine audio quality and unsurpassed reliability, thousands of BW Broadcast's FM transmitters are operating trouble-free in some of the world's most remote installations. With comprehensive features and creative design, the TX150 is an exceptional value for those on a budget but don't want to compromise on performance.
All BW Broadcast FM transmitters are loaded with features, such as a configurable compressor/limiter and front-panel LCD control interface. Underlying architecture includes a unique dual-loop Virtual VFO exciter, ultra-low distortion modulator and high performance stereo encoder integrated into a great performing, highly stable FM transmission system. Developed for global use, the TX150 is frequency agile and comply with all applicable CE, FCC and EU regulations.
The power amplifier in the TX150 is based on a modern MOSFET device. High power fans draw fresh air through the transmitter's heatsink to keep the transistor and amplifier cool. Amplifiers are protected from damage by temperature control systems and antenna fault (VSWR) monitoring which react to faults by reducing the output power to a safe operating level, keeping you on air rather than shutting down completely.
The TX150 is more configurable and flexible than other units in it's class. The limiter and stereo encoder can be switched in and out of circuit. The rear panel contains XLR balanced inputs with input level controls, BNC for multiplex output from the internal digital stereo generator, BNC for multiplex input to the exciter for loop through operation and external processor input. RF output is via an N-Type socket.
