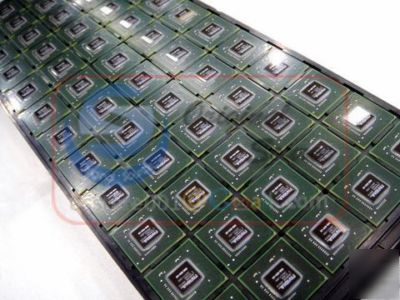

Nvidia graphics G96-650-C1 9650M gt vga gpu bga chip ic
Model: G96-650-C1 / 9650M GT
The Nvidia GeForce 9650M GT is a DirectX 10 graphics card for notebooks and technically a higher clocked 9600M GT. It is produced in 55nm and therefore the current consumption is similar to the 9600M GT which is produced in 65nm. As the 9600M GT it features the PureVideo HD video processor (VP3) and HybridPower support.
In conjunction with the Nvidia 9100M G integrated graphics, the 9650M GT supports Hybrid-SLI (only HybridPower). HybridPower is a technique to choose between the integrated and dedicated graphics core, if performance or battery runtime is needed. This works only in Windows Vista. Up to now the user has to use a tool to switch between the GPUs. Later Nvidia wants to switch automatically in the drivers. GeForceBoost is not supported with this card, as there would be no performance gain.
As the 8600M GT and 9600M GT, the 9650M GT features 32 stream processors that do the graphic work of the vertex- and pixel-shaders.
The performance of the 9650M GT should be somewhere near the 9650M GS because of the high shader clock rate (with GDDR3). According to Zepto (first manufacturer who announced the card) the 9650M GT should be up to 20% faster than a 9600M GT (in 3DMark06).
Compared to desktop graphics cards, the 9650M GT is similar to the GeForce 9500GT (which also descends from the G96 core). The desktop CPU 9600 GT has a 256 bit memory bus and is therefore much faster.
PCI-E 2.0, 400 MHz Speichertaktung bei GDDR2, 800 MHz bei GDDR3, PureVideo HD Technologie (VP3), Hybrid SLI mit HybridPower (mit aktuellen nVidia Chips tzen).
