MICROVITEC 1VA2000 VIDEO ADAPTER
This adapter is intended as a means of converting a standard VGA signal (RGB, Hsync, Vsync) from a computer to a RGB signal with sync-on-green (SOG) for a suitable monitor. The adapter is self-powered and relies on the signal source being to the VGA standard in all respects for effective operation.

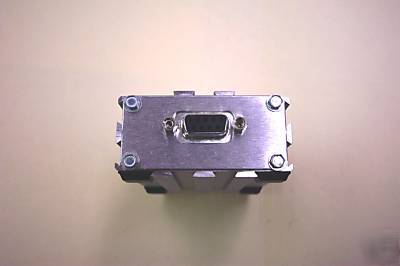

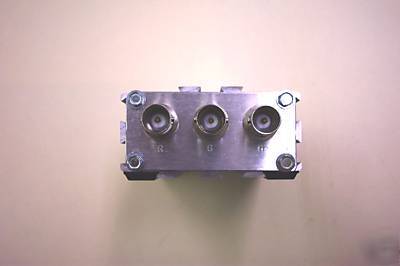

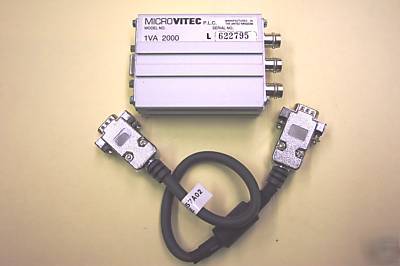

The video adapter is composed of two parts: a video cable and the video adapter box. The video cable is 9-pin (male) to 15-pin HD (male) DSUB. Typical installation connects the adapter to the computer source with the supplied cable and the adapter's RGB output to the monitor by means of three (3) 75 ohm BNC cables (not supplied).
Note: This adapter does not produce a NTSC signal for a television.
