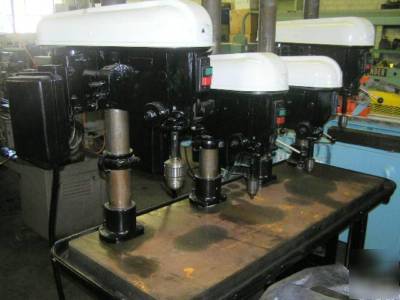

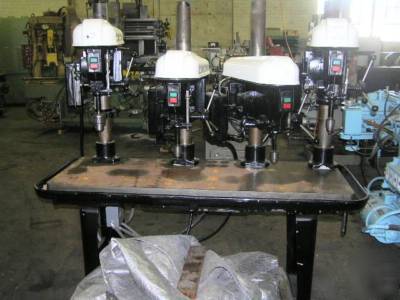

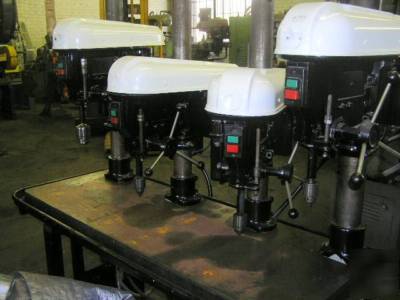

Delta 4 spindle model 17-430 gang drill
DELTA 4 SPINDLE MODEL 17-430 GANG DRILL
Maximum Swing.....................17"
Throat Depth......................8 1/2"
Distance Btwn Heads...............18" Chuck Centers
Max Height Under Spindle..........18"
Spindle Taper.....................#3MT
Spindle Speeds....................80 to 1200 rpm
Table Size........................24" x 65"
Spindle Motors....................1 hp
