Lock-in amplifier ametek eg&g par 5207 w/ opt 92 98 nos
AMETEK EG&G Brookdeal Electronics Princeton Applied Research 5207 Lock-in Amplifier
Versatile Data Acquisition Instrument for the Physical and Life Sciences

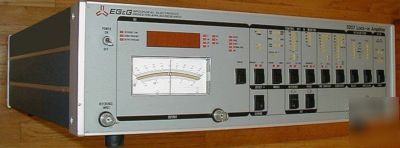

photo of instrument powered-on
This instrument is in very good condition and has been checked for front panel operation of all controls and indicators. It was never used in service and has been stored since purchase.
See links below for PDF files which include an instruction manual for the computer interface command set, an instruction manual for an accessory preamp (not included in this listing), a link for ordering the instrument's instruction manual, and product brochures which describe this instrument.
In its most basic form a lock-in amplifier is an instrument with dual capability. It can recover signals in the presence of an overwhelming noise background or, alternatively, it can provide high resolution measurements of relatively clean signals over several orders of magnitude and frequency. However, modern instruments offer far more than these two basic functions and this increased capability has led to their acceptance, in many scientific disciplines, as units which can provide the optimum solution to a large range of measurement problems. For example, the modern lock-in amplifier will function as:
* AC Signal Recovery Instrument
It is this versatility, available in a single compact unit, which makes the lock-in amplifier an invaluable addition to any laboratory.
block diagram of typical lock-in amplifier
Block Diagram of a typical lock-in amplifier
Interior View (top cover removed)
View of rear panel showing connectors
Documents available to download:
* Model 5207/5208 Computer Commands: GPIB-command-ref.pdf
* Model 5182 Low-Noise Current Preamplifier: 5182_preamp_instructiion_manul.pdf
* Low Level Optical Detection using Lock-In Amplifier Techniques: AN1003.pdf
* Sales Brochure from Tucker Electronics w/this model: Tucker-LockInAmplifiers.pdf
Link for ordering the Instruction Manual for this instrument: Order Manuals
Installed PCBs (viewed from right to left in photo above):
Single-Phase Lock-in Amplifier
Computercontrollable unit with integral RS232C and IEEE-488 interfaces to
Controlled functions include sensitivity, averaging time constant, phase,
operating frequency, offset, dynamic reserve, display mode, and others
Standard features include auto-phasing, auto-ranging, and sine-wave response
Both digital and analog displays
Full scale sensitivity is 1 V to 5 Vrms
Input impedance is AC coupled (100 M shunted by 40 pF)
Input modes are single-ended and differential
Frequency range determined by plug-in cards from 5 Hz to 200 kHz
Common mode rejection is 120 dB maximum
