Rf/mw choke, mcl p/n adch-80, 0.05 to 8 ghz, 1 lot = 6

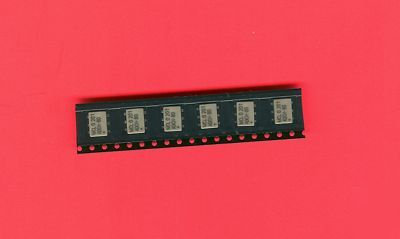

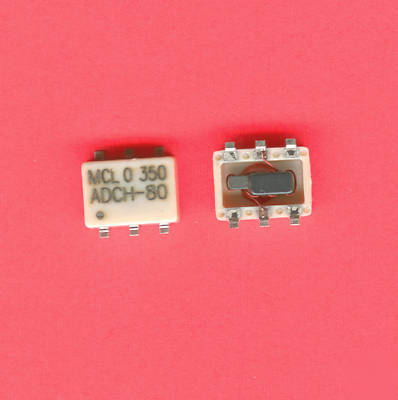

This LOT is composed of 6 each Mini-Circuits ADCH-80 surface mount (SMD) wideband RF/MicroWave Chokes (image 1 shows all 6, and image 3 is a magnified view of the top & bottom of 1 choke). The specifications for this assembly are as follows. Frequency Range: 50 8000 MHz, Insertion Loss 1 dB max, DC current: 100 mA max. Typical applications include biasing of amplifiers and active antennas. Click on this hyperlink, MWA32 , to view an amplifier application.
