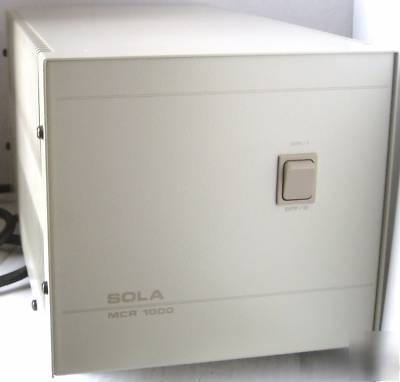

Sola mcr 1000 portable line conditioner voltage reg.
This listing is for a line transformer / surge supressor / voltage regulator.
* Model / Part #: MCR-1000 (MCR1000)
* List Price: Approximately $1350
* Description: MCR Portable - Power Line Conditioning with Voltage Regulation
MCR Portable Series - Power Line Conditioning with Voltage Regulation
The MCR Series provides excellent noise filtering and surge protection to protect connected equipment from damage, degradation or misoperation. Combined with the excellent voltage regulation inherent to SolaHD s patented ferroresonant design, they can increase the actual Mean Time Before Failure (MTBF) of protected equipment. These units are a perfect choice where dirty power caused by impulses, swell, sags, brownouts and waveform distortion can lead to costly downtime because of damaged equipment.
* Noise attenuation - 120 dB common mode / 60 dB transverse mode
* Surge suppression tested to ANSI/IEEE C62.41 Class A & B Waveform: <10 V let through typical
* Galvanic isolation provides exceptional circuit protection
* Point-of-use Protection - Cord & Plug Connected / Easy & Flexible Installation / 25 year typical MTBF
* 3% output voltage regulation
* Voltage Input/Output: 120

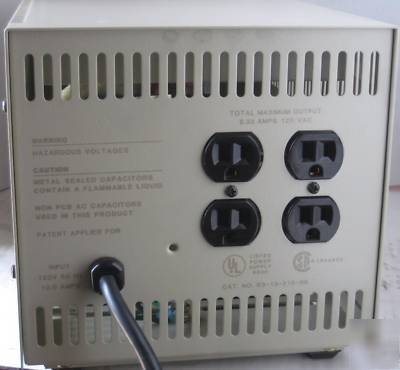

* Receptacle Quantity / NEMA Type: (4) 5-15R
Sola's online product page is located at http:// /products/powerconditioning/mcr_port.htm
