Tms mpc-t-16H mpc-tokheim console system

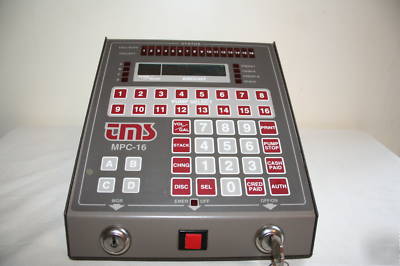

TMS MPC-T-16 Tokheim Console System 16 Electronic and Mechanical Hoses
For use with Tokheim 262A, 426, 426A , Premier and any Mechanical Dispensers
This console is used, like new condition.

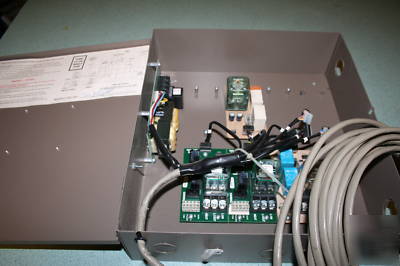

Interconnection Box for use with dispensing devices 61L0
Triangle Microsystems, Inc Model 800f-1 to be used with control console, to be used dispensing devise containing the following:
a) Pulse transmitter circuit: Rated 20 VDC. 50 MA
b) Pump motor circuit: Rated 115/240 VAC 3/4 HP Max.
c) Reset motor circuit: Rated 125 VAC. 3 Amp Max.
d) Solenoid (where applicable) Rated 125 VAC. 15 Watts Max.
e) Junction box of sufficient volume.
Not suitable for direct connection to intrinsically safe wiring
This box contains more than one power supply connection point.
Power supply: 115/240 VAC, 60 Hz., 10 Amps
Relay Board: 115/240 VAC, 60 Hz., 20 Amp

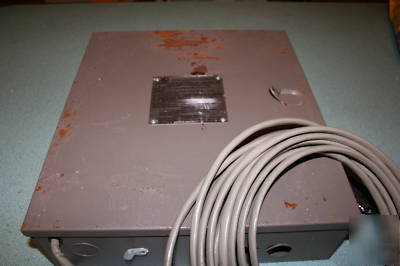

The front of the interconnection box has some rust on it, other wise it is in very good condition.
Installation instructions for connecting TMS MPC Control system to Tokheim Electronic Pumps/Dispensers

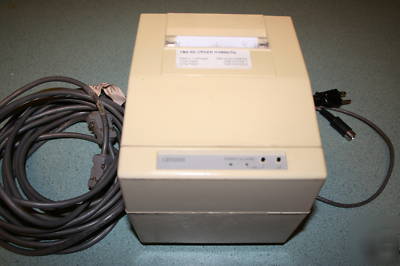

Citizens printer DP 3535, (black and red) manual, cables to hook up to TMS and all supplies I have paper and ribbons
