1-1/4 wright-austin type t gas/liquid separator

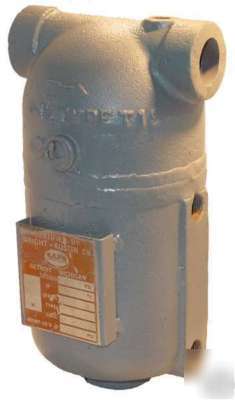

1-1/4 Wright-Austin Type T Gas/Liquid Separator
The Wright-Austin Type T is an economical centrifugal separator that helps provide clean, moisture free air, gas, or steam. The separator causes the gas stream to enter a controlled centrifugal flow. This action forces the entrained moisture and dirt to the outer wall. Unable to reach the outlet, 99% of droplets sized 10 microns and larger gather at the drain outlet below. The exclusive Vortex Containment Plate guarantees no re-entrainment. Efficient separation with no re-entrainment assures a dry air, gas, or steam flow at the separator outlet. The Type T is compact, line-supported, and easily installed. This particular type is effective in applications where the system has an entrained liquid flow rate that does not exceed 40% by weight of the separator's air flow capacity.
This is a new surplus item. It has never been installed, but may have some surface rust or minor scrapes from sitting on the warehouse shelf.
Input and output are 1-1/4 Socket-Weld Ends
Warehouse Location: TRLR-LEFT-07-02
