300MW+650NM red high power laser diode module kit glass

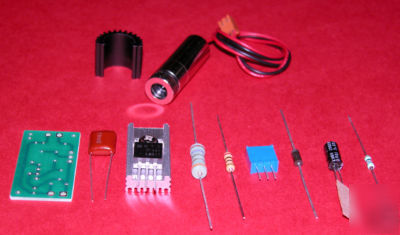

300mW+ 650nm Red Burning Laser Diode Module with Adjustable Glass Lens include Professional DIY Kit
9 part professional precision Adjustable Constant Current about 100mA to 463mA Driver DIY kit with protection circuit included.
Also include Heat Sink for LM317 and Laser Diode Module.
Already routed Professional PCB DIY Kit.
There are countless uses for a small compact Red laser, such as HOLOGRAPHY, LASER LIGHT SHOWS, Communication, Medical, etc...
The ideal use of this open can diode is about 250mW CW at 420mA with acrylic lens( 300mW with glass lens).
Module : 12mm diameter x 30mm length
PCB can change without notice for improvement.
Constant current driver kit include some safety circuit for laser diode protection- 9 part with Heat sink for LM317 and Laser Diode Module .
Circuits included some filter, max. current limit(about 463mW) for protect from over current, capacitor discharge and reverse current protection.
Maximum current limit resistor can remove but I don't recommand because it's make easy kill your diode.
Input Voltage range from 6 V to 20V(eventhough IC can drive 37V I limit it to 20V for safety)
