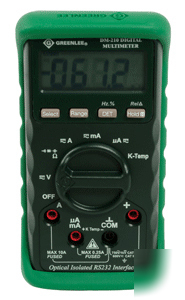

New greenlee dm-200 digital multimeters DM200
Spec: Voltage Measurement: ACV - 250.0mV; 2.500, 25.00, 250.0, 750V DCV - 250.0mV; 2.500, 25.00, 250.0, 1000V Amperage Measurement: 250.0, 2500 A; 25.00, 250.0mA; 2.500, 10.00A Resistance: 250.0O; 2.500, 25.00, 250.0kO; 2.500, 25.00MO AC Detective Voltage Detection Range: 30V-500V+ Capacitance: 2.500, 25.00, 250.0nF; 2.500, 25.00 F Frequency: 30Hz-200kHz Temperature: K type, -4 F to 572 F (-20 C to 300 C) Measurement Category: Cat III, 600V; Cat II, 750V AC/1000V DC
* Autoranging for convenient operation, non-contact voltage detection, and to save you time.
* Auto power off and low battery indicator.
* RS-232 capable, may be connected to a PC for extended measurement capability with optional optically isolated interface DMSC-2.
* Frequency, temperature, and capacitance measurements.
* Accessories included: (2) 1.5V AAA batteries, test leads, bead temperature probe (DM-210 only, 400 F/204 C max).
